MP3V5050GP - NXP

Description: Pressure Sensor 7.25PSI (50kPa) Vented Gauge Male - 0.13" (3.17mm) Tube 0.06 V ~ 2.82 V 8-SMD, Gull Wing, Side Port

Download MP3V5050GP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

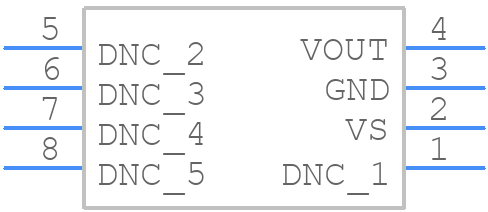

MP3V5050GP - NXP - PCB symbol
click to zoom
PCB Footprints
MP3V5050GP - NXP PCB footprint - Other - Other - SOT1693-3
click to zoom
3D Models
MP3V5050GP - NXP - 3D model - Other - SOT1693-3
click to zoom

MP3V5050GP Details

  • Manufacturer Part Number:

    MP3V5050GP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • Accuracy-Max (%):

    2.5%

  • Additional Feature:

    TEMPERATURE COMPENSATED, SIGNAL CONDITION, SENSITIVITY VALUE IS 54

  • Body Breadth:

    12.06 mm

  • Body Height:

    7.365 mm

  • Body Length or Diameter:

    12.06 mm

  • Housing:

    PLASTIC

  • Mounting Feature:

    SURFACE MOUNT

  • Offset-Nom:

    0.12V

  • Operating Current-Max:

    10 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.06-2.82V

  • Output Type:

    ANALOG VOLTAGE

  • Package Shape/Style:

    SQUARE

  • Port Type:

    BARBED

  • Pressure Range-Max:

    7.25 Psi

  • Pressure Sensing Mode:

    GAGE

  • Response Time:

    1000 µs

  • Sensors/Transducers Type:

    PRESSURE SENSOR,PIEZORESISTIVE

  • Supply Voltage-Max:

    3.3 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MP3V5050GP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Choose an output capacitor with low ESR (Equivalent Series Resistance) and a capacitance value between 10uF to 22uF. X5R or X7R ceramic capacitors are recommended.
  • The maximum input voltage is 26V, but it's recommended to operate within 18V to ensure reliable operation and minimize the risk of damage.
  • Monitor the device's junction temperature, input voltage, and output current to ensure they are within the specified limits. Use thermal monitoring and overcurrent protection to prevent damage.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor. This helps to filter out noise and ensure stable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP3V5050GP Overview

Use the download button to access the MP3V5050GP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP3V5, or try a keyword search, such as Pressure Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
