The recommended PCB layout for the MP4012DS-LF involves placing the input and output capacitors close to the IC, using wide traces for the power lines, and separating the analog and digital grounds. A 4-layer PCB with a solid ground plane is also recommended.
To ensure stability and prevent oscillations, it's essential to follow the recommended component values and PCB layout. Additionally, the output capacitor should have a low ESR, and the input capacitor should be placed close to the IC. A minimum output capacitance of 10uF is recommended.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the IC.
The MP4012DS-LF is rated for operation up to 85°C, but it's essential to consider the thermal derating of the IC and the surrounding components. Ensure that the IC is properly heatsinked, and the ambient temperature is within the specified range.
The power dissipation of the MP4012DS-LF can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP4012DS-LF Overview

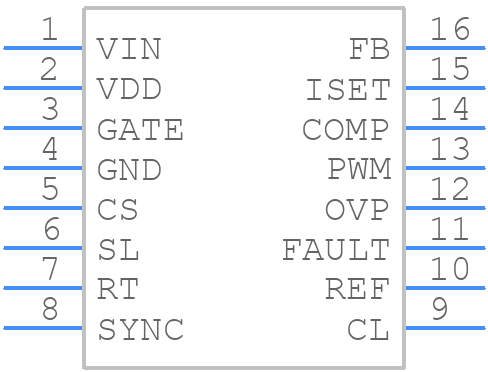

Use the download button to access the MP4012DS-LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP401,
or try a keyword search, such as Display Drivers
