MP4420H footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

MP4420H - Monolithic Power Systems (MPS)

Description: Wide 4V to 36V Continuous Operating Input Range • 90mΩ/55mΩ Low RDS(ON) Internal Power MOSFETs • High-Efficiency Synchronous Mode Operation • Default 410kHz Switching Frequency • Synchronizes to a 200kHz to 2.2MHz External Clock • High Duty Cycle for Automotive Cold-crank • Power-Save Mode • Internal Soft-Start • Power Good • OCP Protection and Hiccup • Thermal Shutdown • Output Adjustable from 0.8V • Available in an 8-pin TSOT23-8 package

Download MP4420H Model

Schematic
symbols

PCB
footprints

3D
models

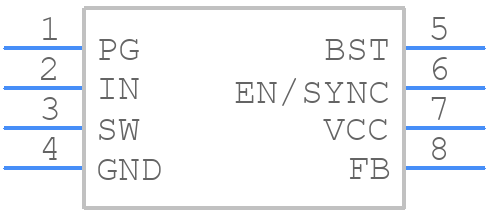

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MP4420H
Part Number MP4420H
Manufacturer Monolithic Power Systems (MPS)
Pin Count 8
Part Category Integrated Circuit
Package Category SOT23 (8-Pin)
Footprint Name SOT23 (8-Pin) - TSOT-23-8
Released Date Apr 3, 2024
Last Modified Date Apr 3, 2024 8:40 AM UTC
Pinout / Pin List Click Here (Member Only)

MP4420H Details

Manufacturer Part Number:
MP4420H
Manufacturer:
Monolithic Power Systems

Trust Checks

Community Provided

System Verified

Community Approved

MP4420H Overview

Use the download button to access the MP4420H schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like MP442, or try a keyword search, such as Switching Regulator or Controllers
