A good PCB layout is crucial for the MP4431GL-Z's performance. It's recommended to follow a 4-layer stackup with a solid ground plane, keep the input and output capacitors close to the IC, and use wide traces for the power paths. A demo board or evaluation board from Monolithic Power Systems can serve as a reference design.
The compensation network depends on the output capacitor's ESR, output voltage, and load characteristics. A good starting point is to use the recommended values in the datasheet, and then adjust them based on the application's specific requirements. You can also use simulation tools or consult with Monolithic Power Systems' application engineers for guidance.
The maximum junction temperature (Tj) for the MP4431GL-Z is 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure the device's lifespan.
The MP4431GL-Z is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design, testing, and validation. It's essential to follow the device's recommended operating conditions, and to consult with Monolithic Power Systems' application engineers for guidance on specific requirements.
To ensure EMC, follow proper PCB layout and design practices, such as using a solid ground plane, minimizing loop areas, and using shielding or filtering components as needed. Additionally, consider using a common-mode choke or EMI filter at the input or output of the converter.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP4431GL-Z Overview

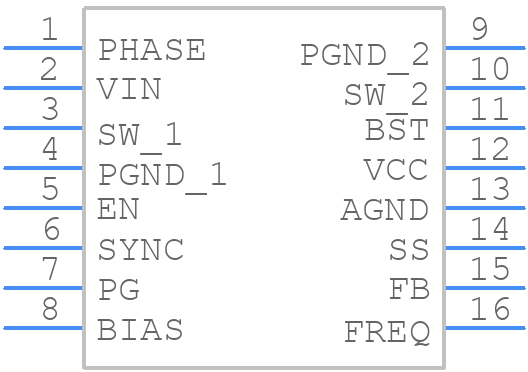

Use the download button to access the MP4431GL-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP443,
or try a keyword search, such as Switching Regulator or Controllers
