A good PCB layout for the MP4459DQT-LF-P should prioritize thermal dissipation. Place the IC near a thermal pad or a heat sink, and ensure good copper pour connectivity to dissipate heat. Avoid routing high-current traces under the IC, and use thermal vias to connect the top and bottom layers.
To optimize output voltage accuracy, ensure the feedback resistors (R1 and R2) have a 1% tolerance or better. Also, use a high-precision voltage reference (e.g., 0.5% or better) and consider adding a capacitor (e.g., 10nF) in parallel with R2 to filter noise.
For the MP4459DQT-LF-P, use a low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7μF to 10μF. This helps to filter input noise and ensure stable operation.
During power-up, ensure the EN pin is pulled high (or connected to VIN) after the input voltage (VIN) has reached a stable level (typically > 2.5V). During power-down, pull the EN pin low before reducing VIN to prevent unwanted switching.
The MP4459DQT-LF-P can deliver up to 3A of output current. However, the actual maximum current depends on the input voltage, output voltage, and thermal conditions. Always check the device's thermal performance and adjust the output current accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP4459DQT-LF-P Overview

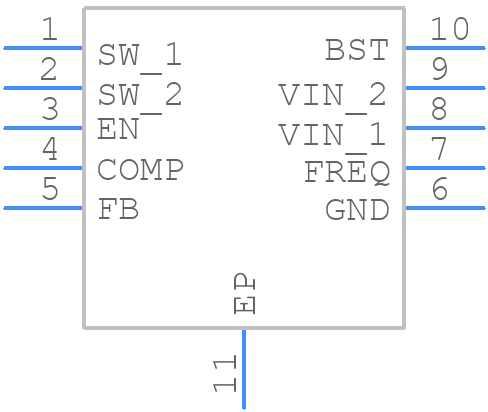

Use the download button to access the MP4459DQT-LF-P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP445,
or try a keyword search, such as Switching Regulator or Controllers
