MP4572GQB-Z - Monolithic Power Systems (MPS)

Description: Buck Switching Regulator IC Positive 1 Output 2A 12-VFQFN

Download MP4572GQB-Z Model
Schematic

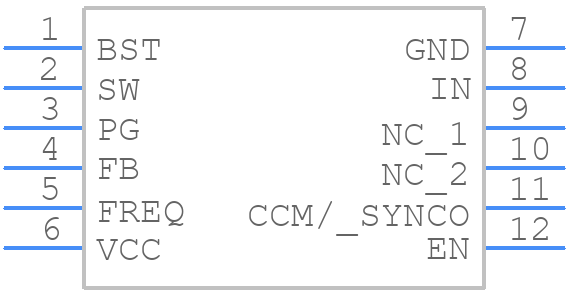

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MP4572GQB-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-12 (2.5mmx3mm)-12
click to zoom
3D Models
MP4572GQB-Z - Monolithic Power Systems (MPS)  - 3D model - Other - QFN-12 (2.5mmx3mm)-12
click to zoom

MP4572GQB-Z Details

  • Manufacturer Part Number:

    MP4572GQB-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    8

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XQCC-N12

  • Length:

    2.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2 A

  • Output Voltage-Max:

    54 V

  • Output Voltage-Min:

    1 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    2700 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    3 mm

MP4572GQB-Z Frequently Asked Questions (FAQs)

  • The MP4572GQB-Z can handle a maximum input voltage of 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, keep the output voltage within the recommended range of 0.8V to 15V.
  • The MP4572GQB-Z can provide a maximum output current of 2A, but it's recommended to keep it below 1.5A for optimal performance and reliability.
  • The output voltage can be adjusted by using a resistive divider network between the output and the FB pin. The ratio of the resistors determines the output voltage, which can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2.
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it's low, the regulator is disabled.
