MP4575GF footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

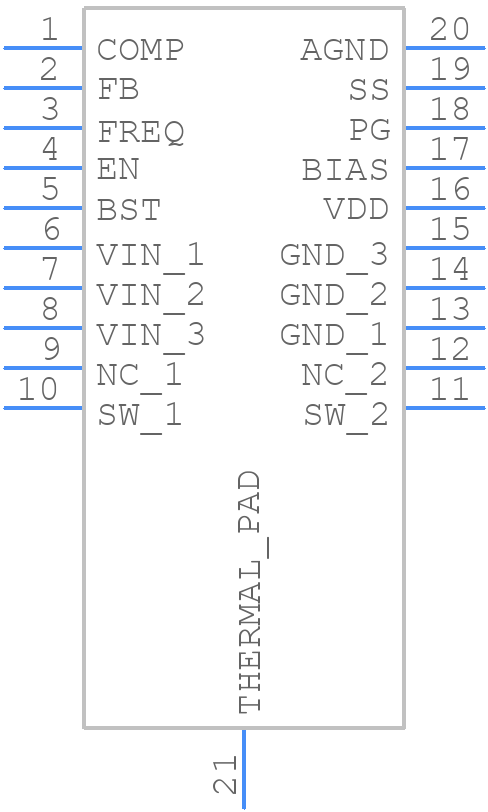

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MP4575GF
Part Number MP4575GF
Manufacturer Monolithic Power Systems (MPS)
Pin Count 21
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - TSSOP20_EP MP4575
Released Date Apr 25, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MP4575GF Details

Manufacturer Part Number:
MP4575GF
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
TSSOP-20
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Monolithic Power Systems
YTEOL:
8
Analog IC - Other Type:
SWITCHING REGULATOR
Control Mode:
CURRENT-MODE
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
55 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-PDSO-G20
Length:
6.5 mm
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
11 A
Output Voltage-Max:
49.5 V
Output Voltage-Min:
1 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP20,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
640 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
4.4 mm

MP4575GF Frequently Asked Questions (FAQs)

The MP4575GF can handle input voltages up to 28V, but it's recommended to keep it below 24V for optimal performance and reliability.
To ensure stability, make sure to follow the recommended layout and component placement guidelines, and use a sufficient output capacitor with a low ESR (Equivalent Series Resistance). A minimum output capacitance of 10uF is recommended.
The MP4575GF can deliver up to 5A of output current, but it's recommended to derate the output current based on the input voltage, output voltage, and ambient temperature to ensure reliable operation.
The output voltage of the MP4575GF can be adjusted by using a resistive divider network between the output and the FB (feedback) pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
The EN pin is used to enable or disable the MP4575GF. When the EN pin is pulled high, the device is enabled and operates normally. When the EN pin is pulled low, the device is disabled and enters a low-power shutdown mode.

Trust Checks

Expert Contribution

System Verified

Community Approved

MP4575GF Overview

Use the download button to access the MP4575GF schematic symbol, PCB footprint, and 3D model.
