MP5010W-BP - MCC

Description: Bridge Rectifier Single Phase Standard 1 kV Through Hole MP-50W

Download MP5010W-BP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MP5010W-BP - MCC - PCB symbol
click to zoom
PCB Footprints

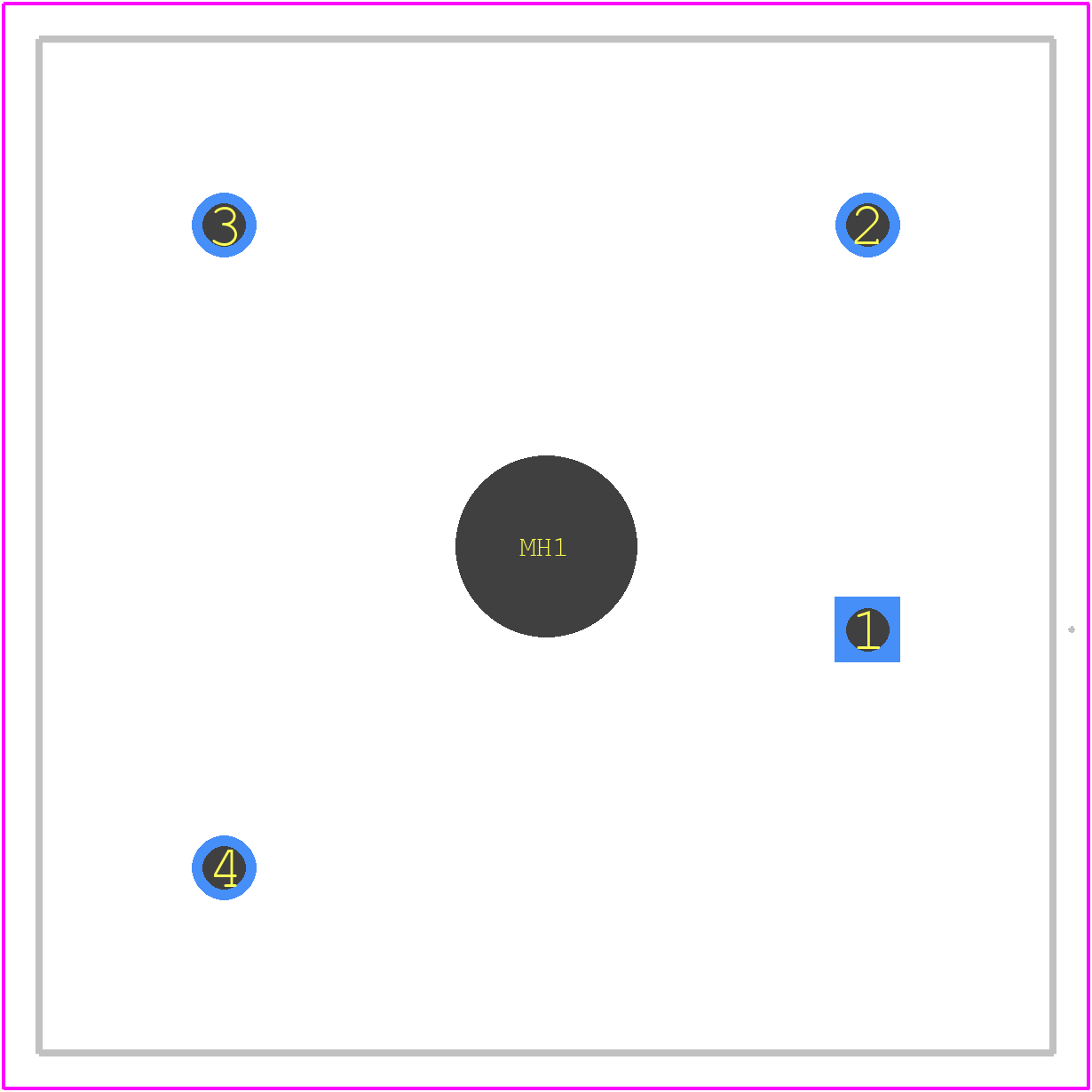

MP5010W-BP - MCC PCB footprint - Other - Other - MP5010W-BP-3
click to zoom
3D Models
MP5010W-BP - MCC - 3D model - Other - MP5010W-BP-3
click to zoom

MP5010W-BP Details

  • Manufacturer Part Number:

    MP5010W-BP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    MP-50W, 4 PIN

  • Pin Count:

    4

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    3

  • Breakdown Voltage-Min:

    1000 V

  • Configuration:

    BRIDGE, 4 ELEMENTS

  • Diode Element Material:

    SILICON

  • Diode Type:

    BRIDGE RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.1 V

  • JESD-30 Code:

    S-PUFM-W4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    450 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Output Current-Max:

    50 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    FLANGE MOUNT

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    1000 V

  • Reverse Current-Max:

    10 µA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    UPPER

  • Time@Peak Reflow Temperature-Max (s):

    10
