A good PCB layout for the MP502W-BP should include a solid ground plane, wide copper traces for power and ground, and a thermal relief pattern around the device's thermal pad. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable operation in high-temperature environments, it's essential to provide adequate heat sinking, such as a heat sink or a thermal interface material, and to follow the recommended PCB layout guidelines. Additionally, consider derating the device's power dissipation according to the ambient temperature.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. This helps to filter out high-frequency noise and ensure stable operation.
To prevent oscillations and instability, ensure that the output capacitor is a low-ESR type, such as a ceramic or polymer capacitor, and that the output voltage is properly decoupled with a capacitor value of 10uF to 22uF. Additionally, avoid using long, thin traces for the output voltage and ensure that the feedback loop is properly compensated.
The maximum allowed voltage drop across the device's internal diode is typically around 0.5V to 0.7V. Exceeding this voltage drop can lead to reduced efficiency and increased power dissipation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP502W-BP Overview

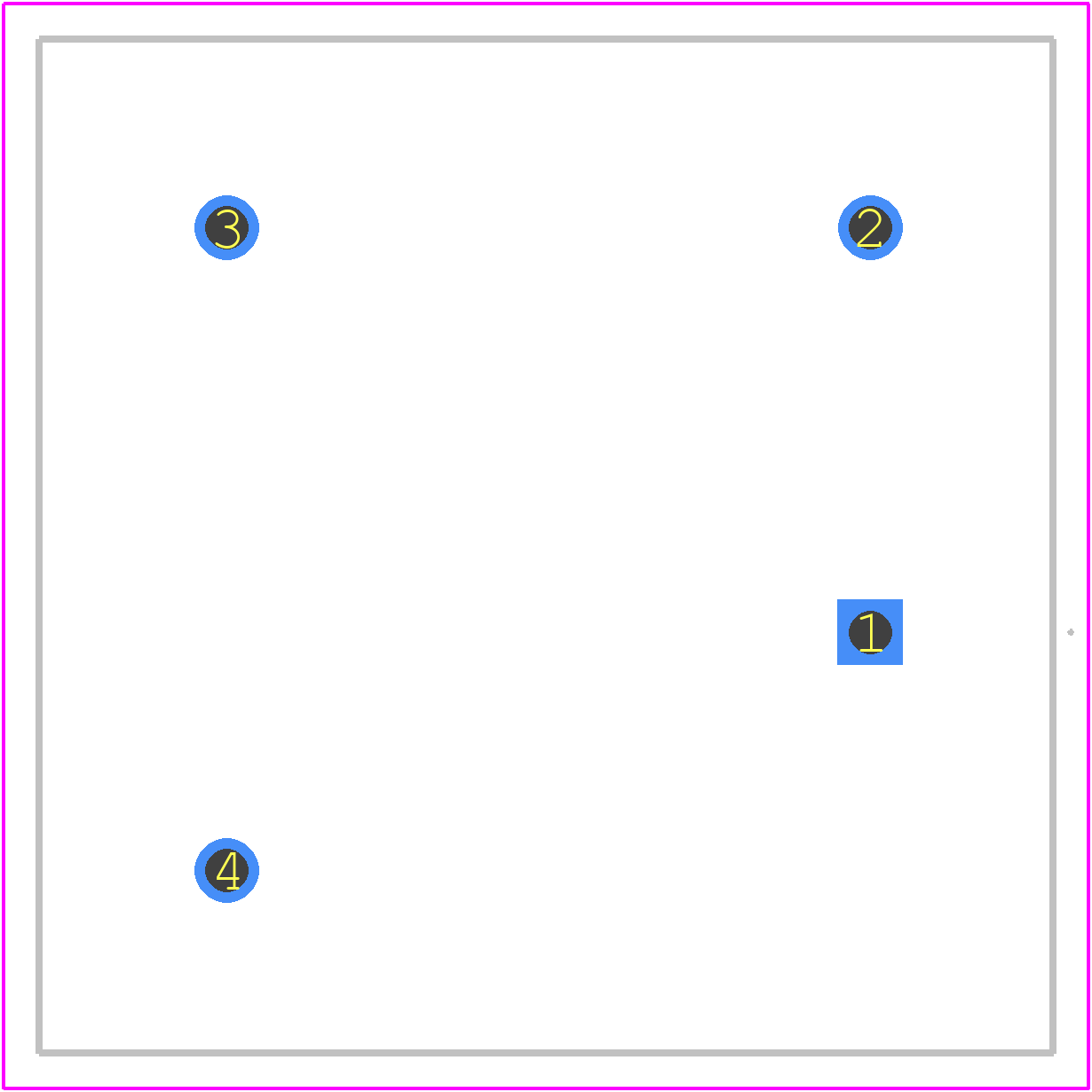

Use the download button to access the MP502W-BP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP502,
or try a keyword search, such as Bridge Rectifier Diodes
