The recommended PCB layout for the MP5402GR-Z involves keeping the input and output capacitors close to the IC, using wide copper traces for the power paths, and minimizing the loop area of the input and output currents to reduce EMI. A 4-layer PCB with a solid ground plane is also recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. Also, avoid using capacitors with high ESL, as they can cause oscillations.
The MP5402GR-Z is rated for operation up to 85°C ambient temperature. However, for reliable operation, it's recommended to keep the ambient temperature below 70°C to ensure the device stays within its thermal specifications.
While it's possible to use a different inductor value or type, it's not recommended. The recommended inductor value and type are chosen to ensure optimal performance and stability. Using a different inductor may affect the device's performance, efficiency, and stability.
To troubleshoot issues, start by checking the input voltage, output voltage, and current consumption using an oscilloscope or multimeter. Verify that the component values and PCB layout match the recommended design. Check for any signs of overheating, and ensure that the device is properly soldered and connected.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP5402GR-Z Overview

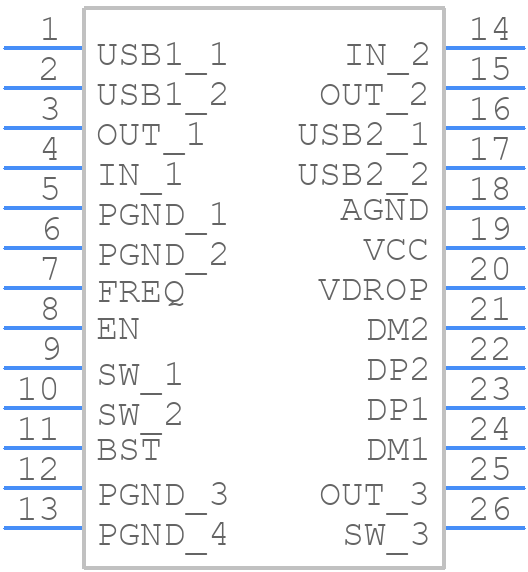

Use the download button to access the MP5402GR-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP540,
or try a keyword search, such as Switching Regulator or Controllers
