MP5418AGQG-Z - Monolithic Power Systems (MPS)

Description: Switching Voltage Regulators Negative Charge Pump andAdjustable Regulator

Download MP5418AGQG-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

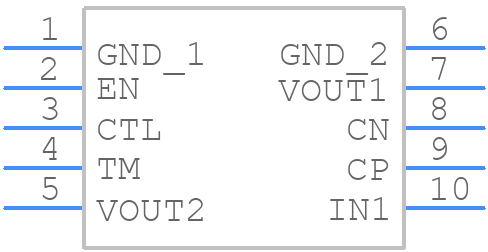

MP5418AGQG-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP5418AGQG-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - QFN-10 (1.4mmx1.8mm)
click to zoom
3D Models
MP5418AGQG-Z - Monolithic Power Systems (MPS) - 3D model - Other - QFN-10 (1.4mmx1.8mm)
click to zoom

MP5418AGQG-Z Details

  • Manufacturer Part Number:

    MP5418AGQG-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-10

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • Analog IC - Other Type:

    SWITCHED CAPACITOR REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Input Voltage-Max:

    5 V

  • Input Voltage-Min:

    2.3 V

  • Input Voltage-Nom:

    3.3 V

  • JESD-30 Code:

    R-PQCC-N10

  • Length:

    1.8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    -5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC10,.06X.07,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    1.4 mm

MP5418AGQG-Z Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the MP5418AGQG-Z is 26V, although the recommended maximum operating voltage is 24V.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of 1ohm or less, and to place the capacitor close to the output pin of the IC.
  • The maximum output current that the MP5418AGQG-Z can deliver is 1.8A, although the recommended maximum operating current is 1.5A to ensure reliable operation.
  • The output voltage of the MP5418AGQG-Z can be adjusted by using a resistive divider network between the output pin and the ground pin, with the feedback pin connected to the center tap of the divider.
  • The thermal shutdown temperature of the MP5418AGQG-Z is typically 150°C, although this can vary depending on the specific application and operating conditions.
