MP6411GS-33-Z - Monolithic Power Systems (MPS)

Description: Power-On Reset during Power-Up and Under Voltage

Download MP6411GS-33-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

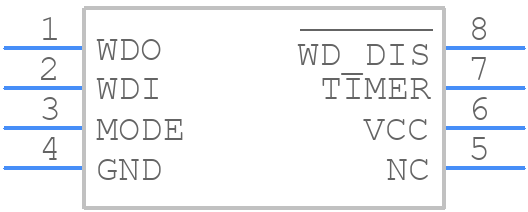

Symbol
MP6411GS-33-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP6411GS-33-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8
click to zoom
3D Models
MP6411GS-33-Z - Monolithic Power Systems (MPS) - 3D model - Small Outline Packages - SOIC-8
click to zoom

MP6411GS-33-Z Details

  • Manufacturer Part Number:

    MP6411GS-33-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    24 Weeks

  • Date Of Intro:

    2018-01-24

  • Manufacturer:

    Monolithic Power Systems

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.23

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.63 V

  • Supply Voltage-Min (Vsup):

    2.97 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

MP6411GS-33-Z Frequently Asked Questions (FAQs)

  • The MP6411GS-33-Z can handle a maximum input voltage of 42V, but it's recommended to keep it below 40V for reliable operation.
  • To ensure the stability of the output voltage, make sure to use a suitable output capacitor with a minimum capacitance of 10uF and a maximum ESR of 1 ohm. Also, ensure that the input voltage is within the recommended range and the output current is within the specified limit.
  • The MP6411GS-33-Z can provide a maximum output current of 1.5A, but it's recommended to keep it below 1.2A for reliable operation and to avoid overheating.
  • The power dissipation of the MP6411GS-33-Z can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
  • The thermal shutdown temperature of the MP6411GS-33-Z is typically around 150°C, but it can vary depending on the specific device and operating conditions.
