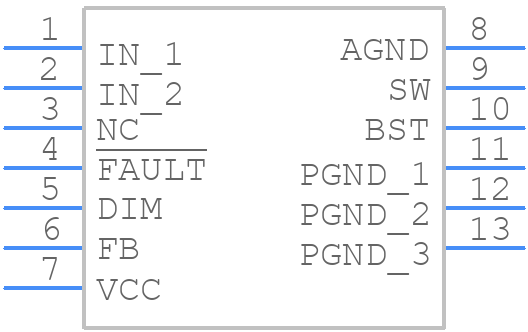

MP7235GQBE-Z - Monolithic Power Systems (MPS)

MP7235GQBE-Z Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A good PCB layout for the MP7235GQBE-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good airflow. Use a 2-layer or 4-layer PCB with a solid ground plane to reduce thermal resistance. Keep the input and output capacitors close to the device to minimize parasitic inductance.
• How do I select the right input and output capacitors?
  Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating to minimize voltage ripple. For output capacitors, select ones with low ESR and high capacitance to ensure good transient response. The datasheet recommends a minimum of 10uF input capacitance and 22uF output capacitance.
• What is the maximum ambient temperature for reliable operation?
  The MP7235GQBE-Z is rated for operation up to 85°C ambient temperature. However, for reliable long-term operation, it's recommended to keep the ambient temperature below 70°C to ensure the device stays within its thermal specifications.
• How do I implement overcurrent protection (OCP) and short-circuit protection (SCP)?
  The MP7235GQBE-Z has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the current limit. For SCP, connect the SCP pin to a resistor divider network that sets the short-circuit detection threshold. Refer to the datasheet for specific implementation details.
• What is the recommended startup sequence for the MP7235GQBE-Z?
  The recommended startup sequence is to first apply the input voltage (VIN) and then the enable signal (EN). This ensures that the device is properly biased and configured before enabling the output. A soft-start feature is also available to reduce inrush current during startup.
