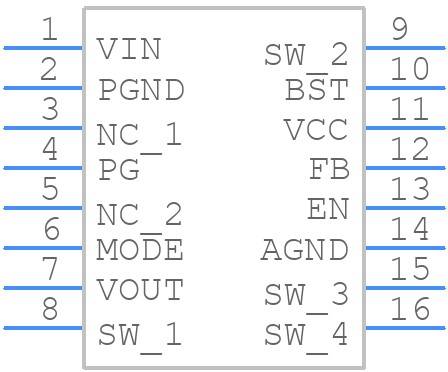

MP8765GQ-Z - Monolithic Power Systems (MPS)

MP8765GQ-Z Frequently Asked Questions (FAQs)

• What is the maximum input voltage that the MP8765GQ-Z can handle?
  The MP8765GQ-Z can handle input voltages up to 24V, but it's recommended to keep it below 18V for optimal performance and reliability.
• How do I ensure the stability of the output voltage?
  To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, keep the output voltage within the recommended range of 0.8V to 5.5V.
• What is the maximum output current that the MP8765GQ-Z can provide?
  The MP8765GQ-Z can provide up to 6A of output current, but it's recommended to keep it below 5A for optimal performance and reliability.
• How do I configure the soft-start feature of the MP8765GQ-Z?
  The soft-start feature can be configured by connecting a capacitor between the SS pin and GND. The value of the capacitor determines the soft-start time, with a larger capacitor resulting in a longer soft-start time.
• What is the purpose of the EN pin, and how do I use it?
  The EN pin is an enable input that allows the user to turn the regulator on or off. To use it, simply connect the EN pin to a logic high (e.g. VCC) to enable the regulator, or to a logic low (e.g. GND) to disable it.
