MP8904DD-LF-P footprint, schematic symbol and 3D model by Monolithic Power Systems (MPS)

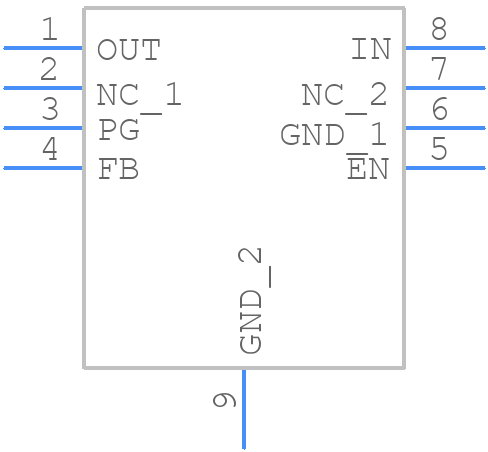

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MP8904DD-LF-P
Part Number MP8904DD-LF-P
Manufacturer Monolithic Power Systems (MPS)
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - qfn
Released Date Apr 26, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MP8904DD-LF-P Details

Manufacturer Part Number:
MP8904DD-LF-P
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
QFN-8
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
28 Weeks
Manufacturer:
Monolithic Power Systems
YTEOL:
6
Adjustability:
ADJUSTABLE
Dropout Voltage1-Nom:
0.3 V
JESD-30 Code:
R-PDSO-N8
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature TJ-Max:
125 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
0.5 A
Output Voltage1-Max:
5 V
Output Voltage1-Min:
0.5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSON
Package Equivalence Code:
SOLCC8,.12,20
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE
Peak Reflow Temperature (Cel):
260
Regulator Type:
ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max:
1.05 mm
Surface Mount:
YES
Terminal Finish:
MATTE TIN
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Width:
2 mm

MP8904DD-LF-P Frequently Asked Questions (FAQs)

A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good airflow around the device. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal performance.
To ensure the device operates within the recommended operating conditions, monitor the input voltage, output voltage, and output current. Implement over-voltage protection, under-voltage protection, and over-current protection to prevent damage to the device. Also, ensure the device is operated within the recommended temperature range.
Exceeding the maximum ratings can lead to device failure, reduced lifespan, or even catastrophic failure. It's essential to operate the device within the recommended specifications to ensure reliable operation and prevent damage.
To troubleshoot issues with the device, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within the recommended specifications. Check for any signs of overheating, and ensure the device is properly soldered and connected. Consult the datasheet and application notes for troubleshooting guidelines.
To minimize EMI and EMC issues, ensure proper PCB layout, use a good ground plane, and implement EMI filters or shielding if necessary. Follow the recommended layout and grounding guidelines in the datasheet and application notes.
