MP8904DD-LF-Z - Monolithic Power Systems (MPS)

Description: IC REG LINEAR POS ADJ 500MA 8QFN

Download MP8904DD-LF-Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

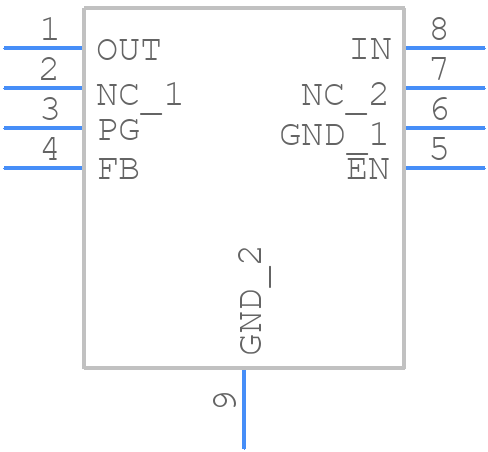

MP8904DD-LF-Z - Monolithic Power Systems (MPS) - PCB symbol
click to zoom
PCB Footprints
MP8904DD-LF-Z - Monolithic Power Systems (MPS) PCB footprint - Small Outline No-lead - Small Outline No-lead - QFN8 (2mm x 3mm)
click to zoom
3D Models
MP8904DD-LF-Z - Monolithic Power Systems (MPS) - 3D model - Small Outline No-lead - QFN8 (2mm x 3mm)
click to zoom

MP8904DD-LF-Z Details

  • Manufacturer Part Number:

    MP8904DD-LF-Z

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SON

  • Package Description:

    QFN-8

  • Pin Count:

    8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    6

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    0.5 A

  • Output Voltage1-Max:

    5 V

  • Output Voltage1-Min:

    0.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSON

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.05 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

MP8904DD-LF-Z Frequently Asked Questions (FAQs)

  • The MP8904DD-LF-Z can handle input voltages up to 24V, but it's recommended to operate within the specified input voltage range of 4.5V to 18V for optimal performance and reliability.
  • To ensure the stability of the output voltage, it's essential to follow the recommended layout and component selection guidelines provided in the datasheet, including the use of a suitable output capacitor and a stable input voltage.
  • The MP8904DD-LF-Z can provide a maximum output current of 2A, but it's recommended to operate within the specified output current range of 0.1A to 1.5A for optimal performance and reliability.
  • The output voltage of the MP8904DD-LF-Z can be adjusted by using an external resistor divider network connected to the FB pin, as described in the datasheet.
  • The EN (Enable) pin is used to enable or disable the regulator. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MP8904DD-LF-Z Overview

Use the download button to access the MP8904DD-LF-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MP890, or try a keyword search, such as Linear Regulator ICs
