A good PCB layout for the MP9442GJ-Z should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure good airflow around the component. Use a 2-layer or 4-layer PCB with a solid ground plane to reduce thermal resistance.
To ensure stable output voltage regulation, ensure that the input voltage is within the recommended range, and the output capacitor is of sufficient value (at least 10uF) and type (X5R or X7R). Also, minimize the distance between the output capacitor and the device.
The maximum allowable ripple current on the input capacitor depends on the capacitor's ESR and the switching frequency. As a general guideline, keep the ripple current below 10% of the maximum input current to ensure reliable operation.
While ceramic capacitors can be used, they may not be the best choice due to their limited capacitance and high ESR. X5R or X7R capacitors are recommended for the output capacitor due to their higher capacitance and lower ESR, which helps maintain output voltage stability.
To calculate the power dissipation of the MP9442GJ-Z, use the following formula: Pd = (Vin - Vout) x Iout x Efficiency. The efficiency can be estimated from the datasheet's efficiency curve or by measuring the input and output currents and voltages.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP9442GJ-Z Overview

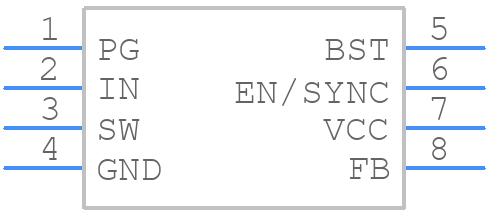

Use the download button to access the MP9442GJ-Z schematic symbol, PCB footprint, and 3D model.
