A good PCB layout for the MP9447GL-Z should prioritize thermal dissipation. Place the IC near a thermal pad or a heat sink, and ensure good airflow around the component. Use thick copper traces for the input and output connections, and keep the switching node (SW) away from sensitive analog nodes.
To optimize output voltage accuracy, ensure that the feedback resistors (R1 and R2) have a high tolerance (e.g., 1%) and are temperature-stable. Also, use a high-quality output capacitor with low ESR and a stable dielectric material. Finally, minimize the distance between the output capacitor and the IC to reduce parasitic inductance.
A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7 μF and 10 μF is recommended for the input capacitor. This helps to filter out high-frequency noise and ensure stable operation.
During power-up, ensure that the EN pin is pulled high after the input voltage has reached a stable level (typically above 2.5 V). During power-down, pull the EN pin low before the input voltage drops below 2.5 V. This helps prevent unwanted switching and ensures a clean shutdown.
The maximum allowed output current for the MP9447GL-Z is 2 A. However, the actual output current capability may be limited by the thermal performance of the PCB and the ambient temperature. Ensure that the IC is properly cooled and the output current is within the recommended range to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MP9447GL-Z Overview

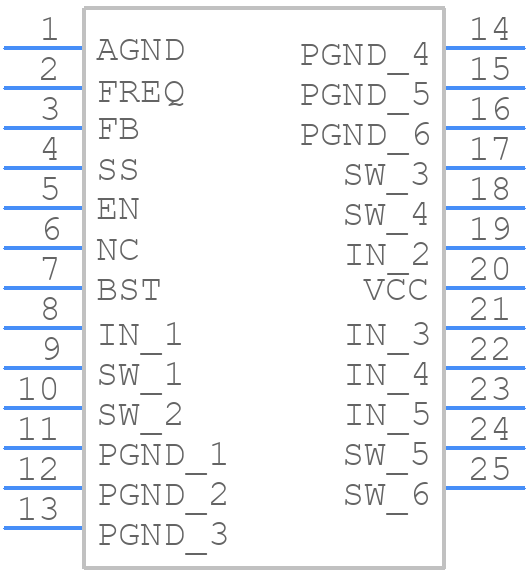

Use the download button to access the MP9447GL-Z schematic symbol, PCB footprint, and 3D model.
