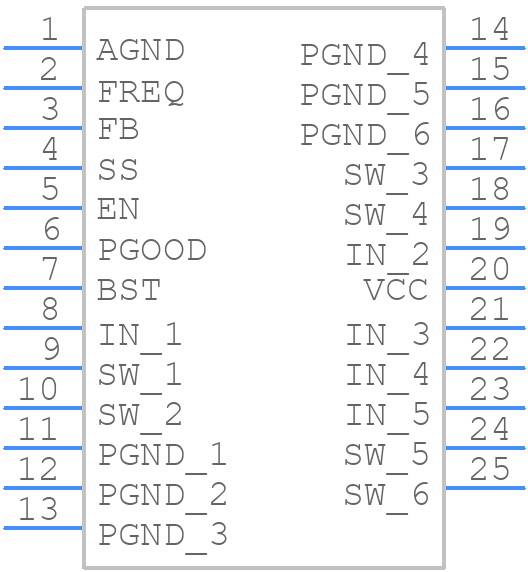

MP9473GL-Z - Monolithic Power Systems (MPS)

MP9473GL-Z Details

• Manufacturer Part Number:

  MP9473GL-Z

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  QFN-20

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  24 Weeks

• Manufacturer:

  Monolithic Power Systems

• YTEOL:

  8

• Additional Feature:

  OUTPUT VOLTAGE IS ADJUSTABLE FROM 0.8V TO 32.4V

• Analog IC - Other Type:

  SWITCHING REGULATOR

• Control Technique:

  PULSE WIDTH MODULATION

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-XXMA-N20

• JESD-609 Code:

  e3

• Length:

  4 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  20

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  9 A

• Package Body Material:

  UNSPECIFIED

• Package Code:

  XMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Surface Mount:

  YES

• Switcher Configuration:

  BUCK

• Switching Frequency-Max:

  1000 kHz

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  UNSPECIFIED

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  3 mm
