The recommended operating temperature range for the MPA106F is -40°C to 85°C, although it can withstand storage temperatures from -55°C to 125°C.
Use a soft, dry brush or a lint-free cloth to gently remove any debris or contaminants. Avoid using chemicals, solvents, or liquids, as they may damage the switch's electrical contacts or compromise its sealing.
The maximum allowable voltage for the MPA106F is 30VDC, although the recommended operating voltage is 12VDC or 24VDC, depending on the specific application.
Yes, the MPA106F is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
To ensure proper sealing, make sure the switch is mounted correctly, with the sealing gasket properly seated and compressed. Also, avoid over-tightening the mounting screws, as this can compromise the seal.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPA106F Overview

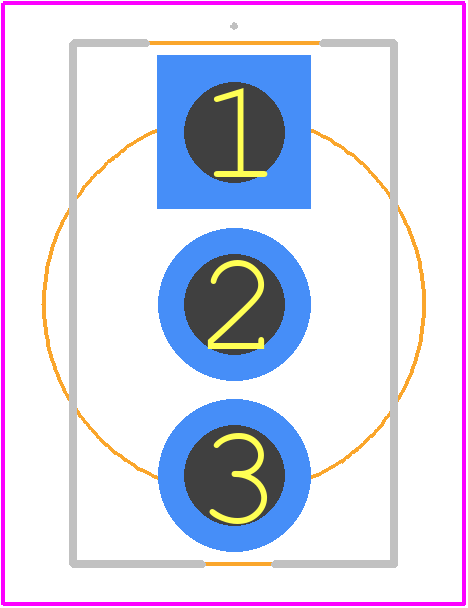

Use the download button to access the MPA106F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPA10,
or try a keyword search, such as Pushbutton Switches
