MPA206RPC - TE Connectivity

MPA206RPC Details

• Manufacturer Part Number:

  MPA206RPC

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  ROHS COMPLIANT

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.35

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Actuator Color:

  NATURAL

• Actuator Finish:

  NICKEL

• Actuator Length:

  0.55 inch

• Actuator Material:

  NICKEL PLATED COPPER ALLOY

• Actuator Travel:

  3.556 mm

• Actuator Type:

  PLUNGER

• Additional Feature:

  PANEL MOUNTABLE

• Body Breadth:

  13 mm

• Body Height:

  11.68 mm

• Body Length or Diameter:

  13 mm

• Bushing Diameter:

  0.25 inch

• Bushing Length:

  0.28 inch

• Bushing Type:

  1/4-40

• Center Contact Plating:

  GOLD OVER SILVER

• Contact (AC) Max Rating R Load:

  6A@125VAC

• Contact Current(AC)-Max:

  6 A

• Contact Current(DC)-Max:

  6 A

• Contact (DC) Max Rating R Load:

  4A@28VDC

• Contact Resistance:

  0.01 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  1500VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  SILVER OVER COPPER

• End Contact Plating:

  GOLD

• Housing Material:

  THERMOSET

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  THERMOSET 94V-0

• Mounting Feature:

  PANEL MOUNT

• Number of Independent Keys:

  1

• Operating Force-Max:

  11.9952 N

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -20 °C

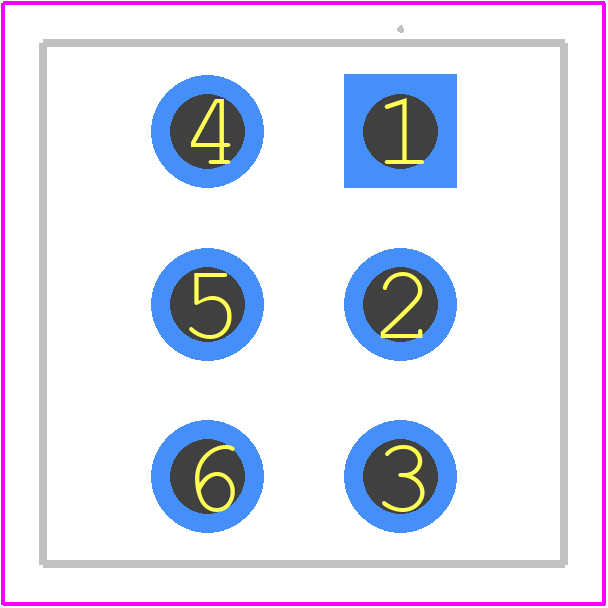

• PCB Hole Count:

  6

• Packing Method:

  BULK

• Sealing:

  MOLDED

• Solderability:

  HAND

• Surface Mount:

  NO

• Switch Action:

  MOMENTARY

• Switch Function:

  DPDT

• Switch Type:

  PUSHBUTTON SWITCH

• Terminal Length:

  0.16 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  WIRE

• Washability:

  SOLVENT
