MPC5200CBV400 - Motorola

MPC5200CBV400 Details

• Manufacturer Part Number:

  MPC5200CBV400

• Part Life Cycle Code:

  Transferred

• Package Description:

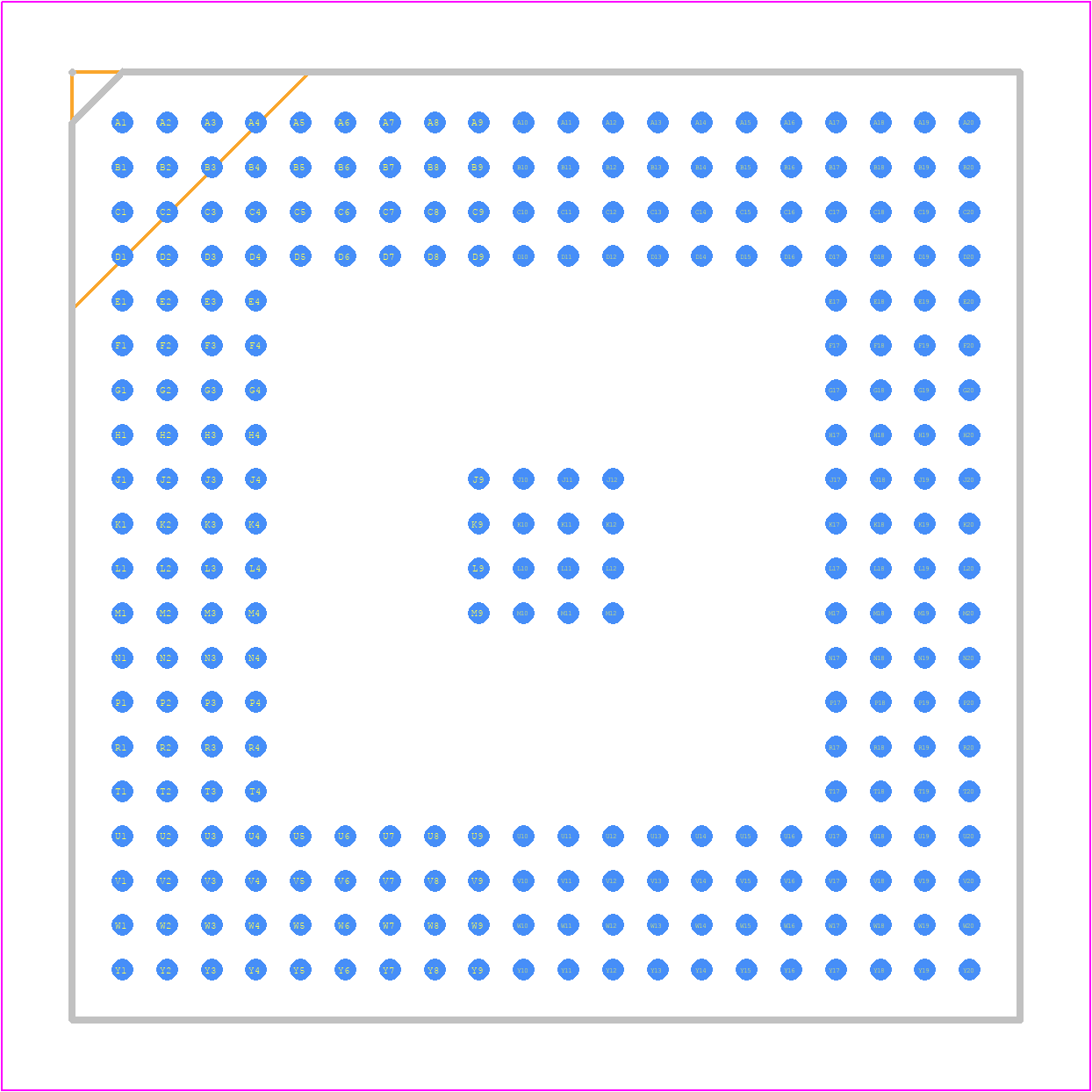

  27 X 27 MM, 1.27 MM PITCH, PLASTIC, BGA-272

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  Motorola Semiconductor Products

• Address Bus Width:

  32

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  35 MHz

• External Data Bus Width:

  32

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B272

• Length:

  27 mm

• Low Power Mode:

  YES

• Number of Terminals:

  272

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA272,20X20,50

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Speed:

  400 MHz

• Supply Voltage-Max:

  1.58 V

• Supply Voltage-Min:

  1.42 V

• Supply Voltage-Nom:

  1.5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  BALL

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  BOTTOM

• Width:

  27 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
