- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MPC5553MVF132
- Part Number MPC5553MVF132
- Manufacturer NXP
- Pin Count 208
- Part Category Integrated Circuit
- Package Category BGA

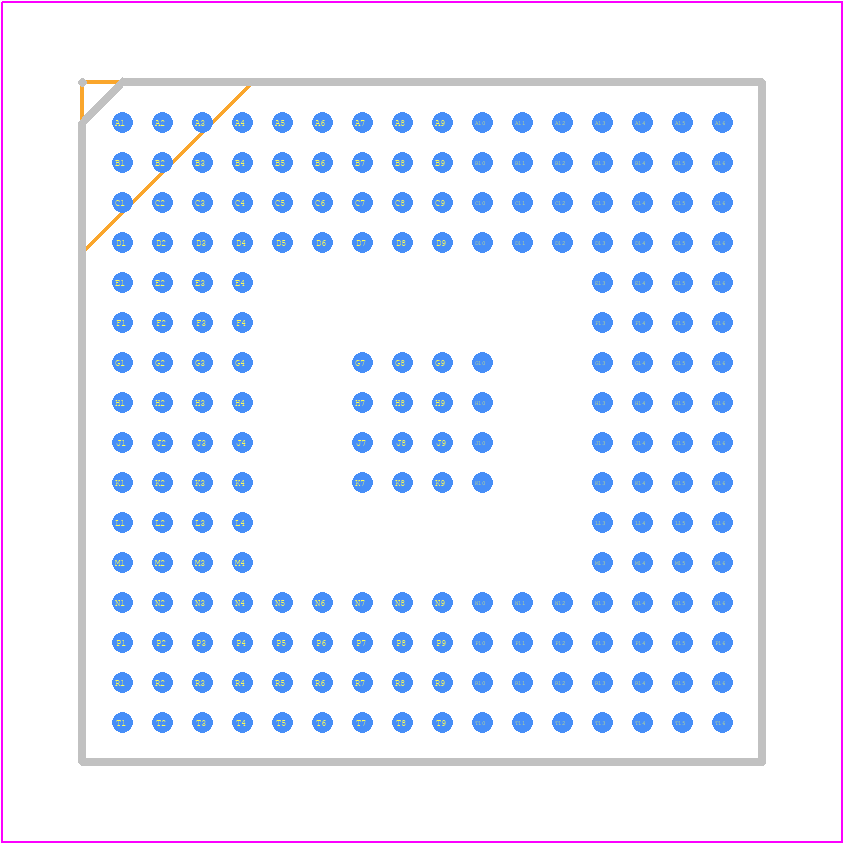

- Footprint Name BGA - 208MAPBGA
- Released Date Jan 8, 2024
- Last Modified Date Jan 8, 2024 12:38 PM UTC
- Pinout / Pin List Click Here (Member Only)
MPC5553MVF132 Details
-
Manufacturer Part Number:
MPC5553MVF132
-
Part Life Cycle Code:
Active
-
Package Description:
17 X 17 MM, 1 MM PITCH, MO-151AAF-1, MAPBGA-208
-
HTS Code:
8542.31.00.25
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
8.08
-
Has ADC:
YES
-
Additional Feature:
ALSO REQUIRES 3.3V SUPPLY
-
Address Bus Width:
24
-
Bit Size:
32
-
Clock Frequency-Max:
20 MHz
MPC5553MVF132 Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the MPC5553MVF132 is -40°C to 125°C, but this can vary depending on the specific package and application.
-
The clock settings for the MPC5553MVF132 can be configured using the Clock Generation Module (CGM) and the Power Management Module (PMM). The CGM generates the clock signals for the processor and peripherals, while the PMM controls the power modes and clock frequencies. Refer to the device's reference manual for detailed configuration information.
-
The maximum frequency for the external bus interface (EBI) on the MPC5553MVF132 is 66 MHz, but this can be limited by the specific application and the type of external memory being used.
-
The MPC5553MVF132 has a built-in watchdog timer (WDT) that can be enabled and configured using the WDT module. The WDT can be used to reset the device in case of a software fault or hang. Refer to the device's reference manual for detailed configuration information.
-
The MPC5553MVF132 has 1.5 MB of on-chip flash memory, but it can also support external flash memory up to 4 MB using the external bus interface (EBI).
Trust Checks
Community Provided
System Verified
Community Approved
MPC5553MVF132 Overview
Use the download button to access the MPC5553MVF132 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPC55,
or try a keyword search, such as Microcontrollers
