MPC565CVR56 - NXP

Description: MCU 32-bit PowerPC RISC 1MB Flash 2.6V/5V Automotive AEC-Q100 388-Pin BGA Tray

Download MPC565CVR56 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MPC565CVR56 - NXP - PCB symbol
click to zoom
PCB Footprints

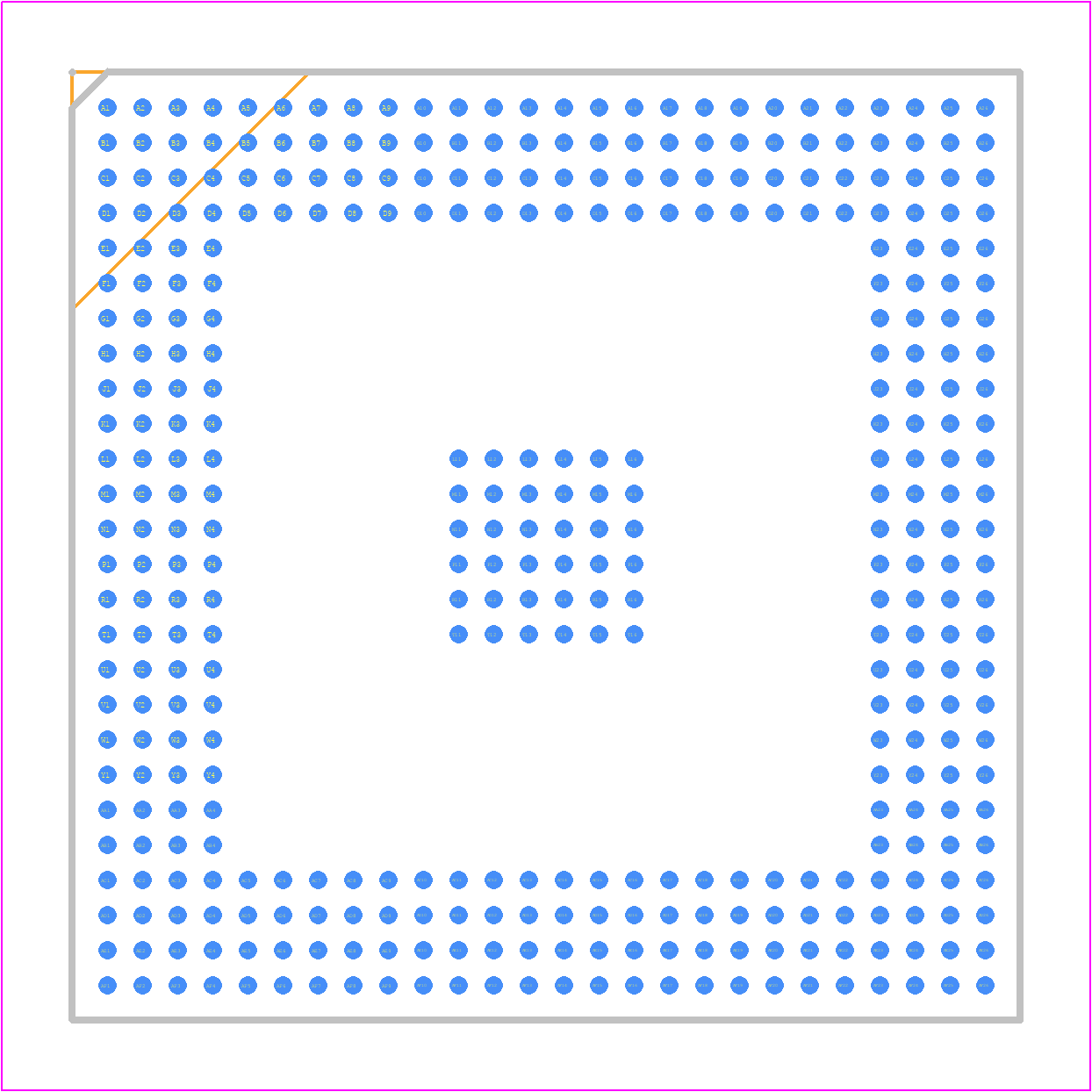

MPC565CVR56 - NXP PCB footprint - BGA - BGA - 388-PBGA (27x27)
click to zoom
3D Models
MPC565CVR56 - NXP - 3D model - BGA - 388-PBGA (27x27)
click to zoom

MPC565CVR56 Details

  • Manufacturer Part Number:

    MPC565CVR56

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    27 X 27 MM, 1 MM PITCH, PLASTIC, MO-151AAL-1, BGA-388

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Has ADC:

    YES

  • Additional Feature:

    ALSO REQUIRES 5V SUPPLY

  • Address Bus Width:

    24

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    84 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    NO

  • External Data Bus Width:

    32

  • JESD-30 Code:

    S-PBGA-B388

  • JESD-609 Code:

    e1

  • Length:

    27 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    388

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA388,26X26,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    36864

  • ROM (words):

    1048576

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    2.55 mm

  • Speed:

    56 MHz

  • Supply Current-Max:

    230 mA

  • Supply Voltage-Max:

    2.7 V

  • Supply Voltage-Min:

    2.6 V

  • Supply Voltage-Nom:

    2.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    27 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

MPC565CVR56 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MPC565CVR56 is -40°C to 125°C, but it can be extended to 150°C with some limitations. However, it's recommended to consult with NXP support for specific use cases.
  • To configure the FlexCAN module for high-speed transmission, you need to set the CAN bit rate to 500 kbps or higher, and ensure that the CAN transceiver is capable of supporting high-speed transmission. Additionally, you may need to adjust the CAN bus termination and layout to minimize signal reflections and ensure reliable transmission.
  • Yes, the MPC565CVR56 can be used with an external crystal oscillator. However, you need to ensure that the crystal oscillator is compatible with the microcontroller's clock input requirements, and that the oscillator is properly configured and connected to the microcontroller.
  • The MPC565CVR56 has a built-in watchdog timer (WDT) that can be enabled and configured using the WDT control register. You need to set the WDT timeout period, enable the WDT, and periodically reset the WDT using a timer or interrupt to prevent a system reset.
  • The MPC565CVR56 has 1.5 MB of flash memory, but the maximum amount of flash memory that can be programmed depends on the specific device configuration and the programming method used. Typically, you can program up to 1.2 MB of flash memory using a flash programming tool or IDE.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPC565CVR56 Overview

Use the download button to access the MPC565CVR56 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPC56, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
