- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for MPC82G516AF
- Part Number MPC82G516AF
- Manufacturer Megawin
- Pin Count 44
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - MPC82G516AF
- Released Date Jul 14, 2021
- Last Modified Date Nov 18, 2023 6:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
MPC82G516AF Details
-
Manufacturer Part Number:
MPC82G516AF
-
Part Life Cycle Code:
Contact Manufacturer
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Megawin Technology Co Ltd
MPC82G516AF Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for the MPC82G516AF is 2.7V to 5.5V, with a typical voltage of 3.3V.
-
The MPC82G516AF has an internal RC oscillator, external crystal oscillator, and external clock input options. The clock source can be configured through the Clock Control Register (CCR) and the Clock Source Select Register (CSSR).
-
The maximum clock frequency supported by the MPC82G516AF is 32 MHz.
-
The ADC on the MPC82G516AF is a 10-bit successive approximation ADC. It can be configured through the ADC Control Register (ADCCR) and the ADC Data Register (ADCDR). The ADC can operate in single-shot or continuous conversion modes.
-
The Watchdog Timer (WDT) on the MPC82G516AF is a safety feature that resets the microcontroller if it fails to respond within a specified time period. This prevents the system from hanging or freezing due to software errors.
Trust Checks
Community Provided
System Verified
Community Approved
MPC82G516AF Overview

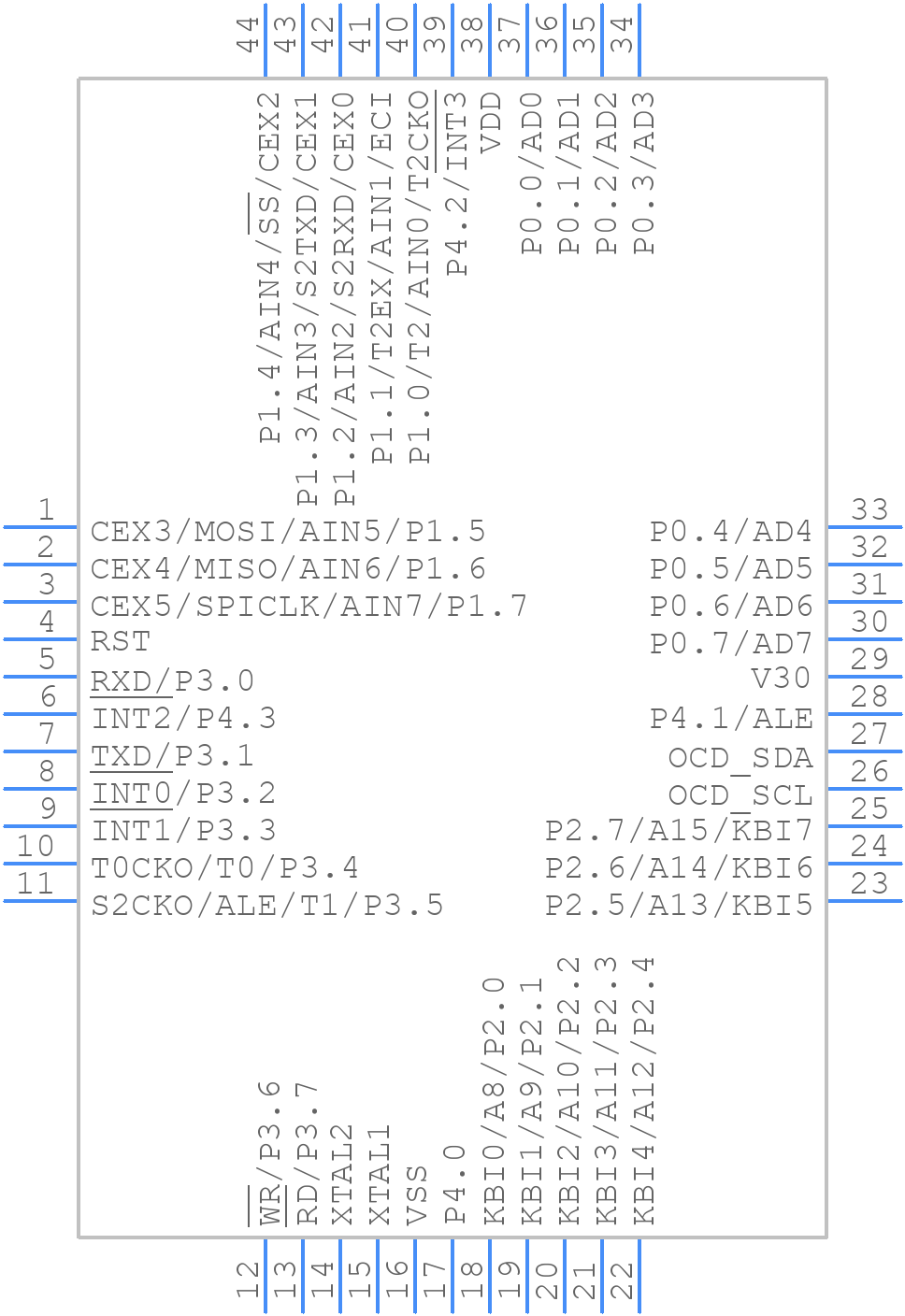

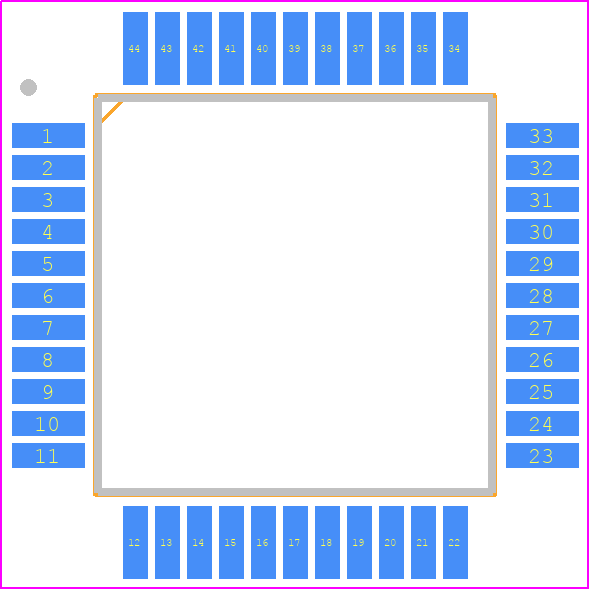

Use the download button to access the MPC82G516AF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPC82,
or try a keyword search, such as Microcontrollers
