- Part Number MPC8309VMADDCA
- Manufacturer NXP
- Pin Count 489
- Part Category Integrated Circuit
- Package Category BGA

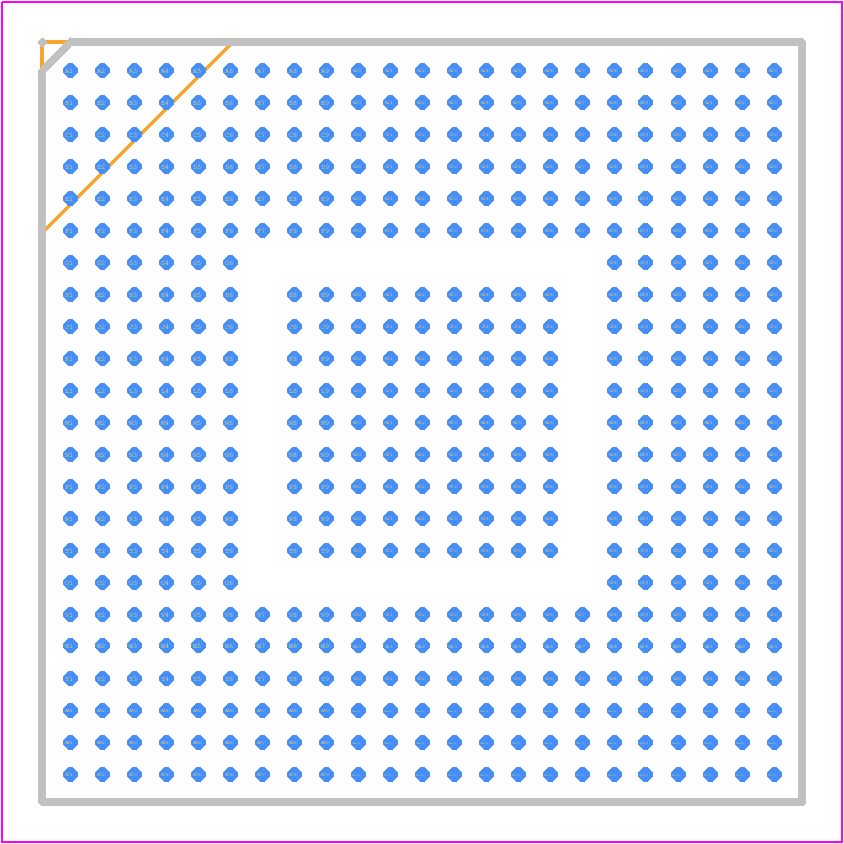

- Footprint Name BGA - 489 BGA
- Released Date Jul 7, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
MPC8309VMADDCA Details
-
Manufacturer Part Number:
MPC8309VMADDCA
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
MAPBGA-489
-
Country Of Origin:
Mainland China
-
ECCN Code:
3A991.A.2
-
HTS Code:
8542.31.00.01
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0
MPC8309VMADDCA Frequently Asked Questions (FAQs)
-
The recommended operating temperature range for the MPC8309VMADDCA is -40°C to 105°C (ambient temperature) and -40°C to 125°C (junction temperature).
-
The DDR2 memory interface on the MPC8309VMADDCA can be configured using the DDR2 controller registers. Refer to the MPC8309 Reference Manual and the DDR2 controller datasheet for detailed configuration information.
-
The maximum clock frequency supported by the MPC8309VMADDCA is 667 MHz.
-
The MPC8309VMADDCA has a built-in power management unit (PMU) that can be configured to manage power consumption. Refer to the MPC8309 Reference Manual for details on how to implement power management using the PMU.
-
The MPC8309VMADDCA can support up to 2 GB of DDR2 memory.
Trust Checks
Community Provided
System Verified
Community Approved
MPC8309VMADDCA Overview
Use the download button to access the MPC8309VMADDCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPC83,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
