MPC8313EVRADDC - NXP

Description: Microprocessors - MPU 8313 REV2.2 W/ENC

Download MPC8313EVRADDC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MPC8313EVRADDC - NXP - PCB symbol
click to zoom
PCB Footprints

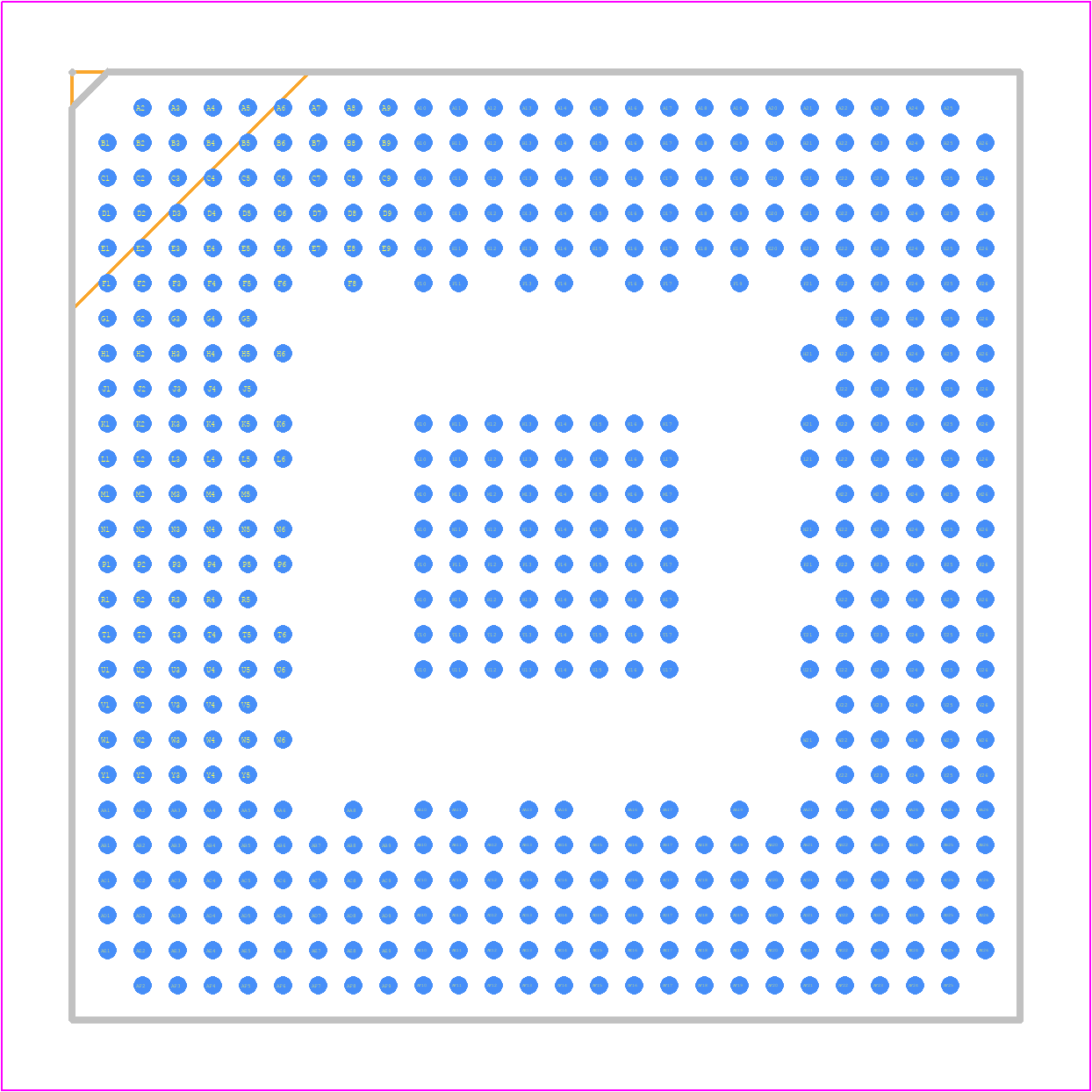

MPC8313EVRADDC - NXP PCB footprint - BGA - BGA - 516 TEPBGA Package
click to zoom
3D Models
MPC8313EVRADDC - NXP - 3D model - BGA - 516 TEPBGA Package
click to zoom

MPC8313EVRADDC Details

  • Manufacturer Part Number:

    MPC8313EVRADDC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    TEBGAII-516

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A002.A.1

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

MPC8313EVRADDC Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MPC8313EVRADDC is -40°C to 105°C.
  • The DDR2 memory interface on the MPC8313EVRADDC can be configured using the DDR2 controller registers. Refer to the MPC8313EVRADDC user manual for detailed configuration instructions.
  • The maximum frequency of the e300 core on the MPC8313EVRADDC is 400 MHz.
  • The PCI Express interface on the MPC8313EVRADDC can be used by configuring the PCIe controller registers and implementing a PCIe device driver. Refer to the MPC8313EVRADDC user manual and the PCIe specification for detailed instructions.
  • The power consumption of the MPC8313EVRADDC varies depending on the operating frequency and voltage. Refer to the MPC8313EVRADDC datasheet for detailed power consumption specifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPC8313EVRADDC Overview

Use the download button to access the MPC8313EVRADDC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPC83, or try a keyword search, such as Microprocessors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
