MPC8313VRAFFC - NXP

Description: NXP - MPC8313VRAFFC - 芯片, 微处理器, 32位, 333MHZ, BGA-516

Download MPC8313VRAFFC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MPC8313VRAFFC - NXP - PCB symbol
click to zoom
PCB Footprints

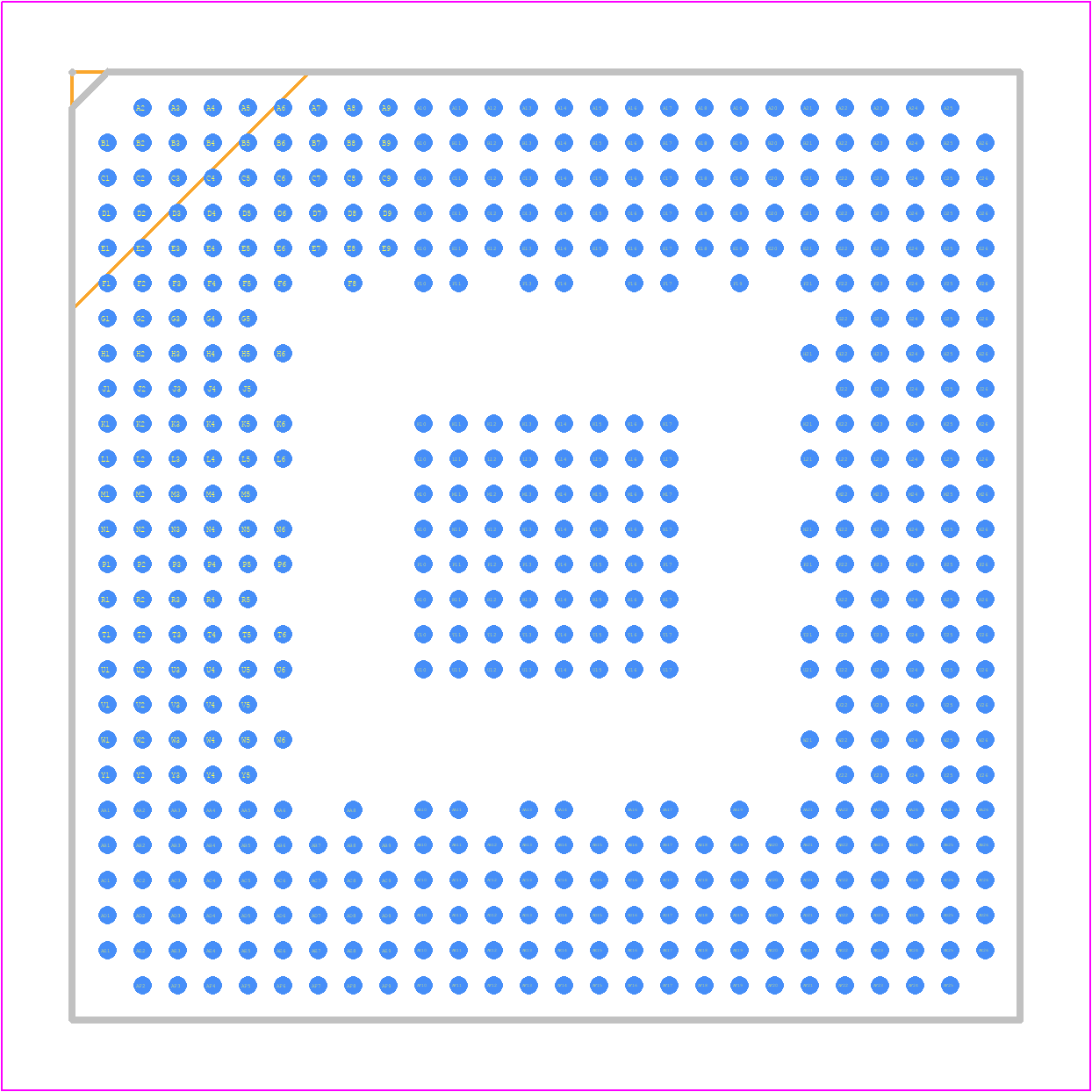

MPC8313VRAFFC - NXP PCB footprint - BGA - BGA - SOT1665-1
click to zoom
3D Models
MPC8313VRAFFC - NXP - 3D model - BGA - SOT1665-1
click to zoom

MPC8313VRAFFC Details

  • Manufacturer Part Number:

    MPC8313VRAFFC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    27 X 27 MM, 2.25 MM HEIGHT, 1 MM PITCH, LEAD FREE, TEPBGA-516

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    3

MPC8313VRAFFC Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MPC8313VRAFFC is -40°C to 105°C.
  • The DDR2 memory interface on the MPC8313VRAFFC can be configured using the DDR2 controller registers. Refer to the MPC8313VRAFFC reference manual for detailed information on configuring the DDR2 memory interface.
  • The maximum frequency of the e300 core on the MPC8313VRAFFC is 400 MHz.
  • The MPC8313VRAFFC has a built-in security engine that supports encryption and decryption. Refer to the MPC8313VRAFFC reference manual for detailed information on using the security features.
  • The power consumption of the MPC8313VRAFFC varies depending on the operating frequency and voltage. Refer to the MPC8313VRAFFC datasheet for detailed power consumption information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPC8313VRAFFC Overview

Use the download button to access the MPC8313VRAFFC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPC83, or try a keyword search, such as Microprocessors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
