MPC8315EVRAGDA - NXP

MPC8315EVRAGDA Details

• Manufacturer Part Number:

  MPC8315EVRAGDA

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Package Description:

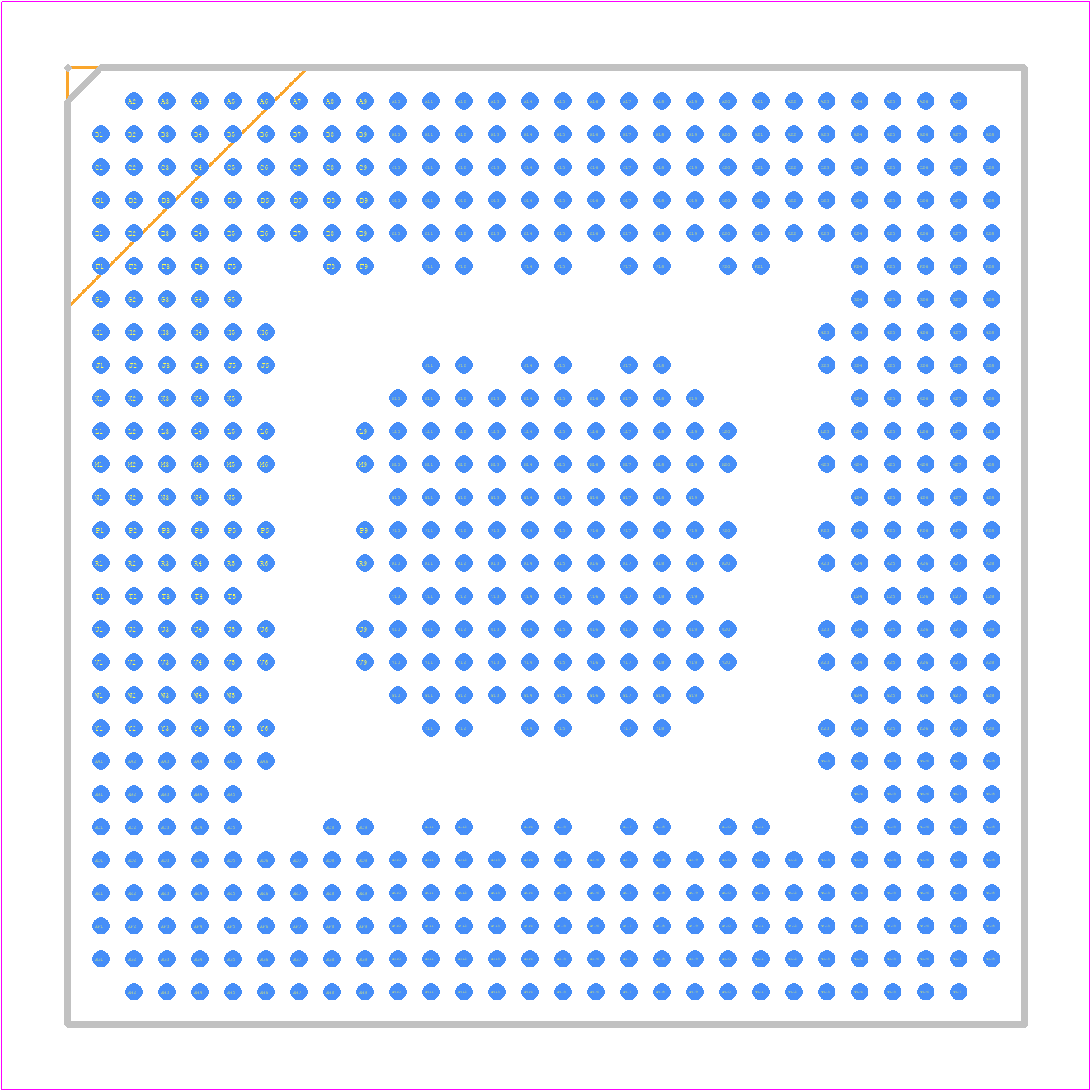

  29 X 29 MM, 2.23 MM HEIGHT, 1 MM PITCH, LEAD FREE, TEPBGAII-620

• Country Of Origin:

  Malaysia

• ECCN Code:

  5A002.A.1

• HTS Code:

  8542.31.00.01

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  3

• Additional Feature:

  ALSO REQUIRES 3.3V I/O SUPPLY

• Address Bus Width:

  32

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  66.67 MHz

• External Data Bus Width:

  32

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B620

• JESD-609 Code:

  e2

• Length:

  29 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  620

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA620,28X28,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.46 mm

• Speed:

  400 MHz

• Supply Voltage-Max:

  1.05 V

• Supply Voltage-Min:

  0.95 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Nickel/Gold (Ni/Au)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  29 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR
