MPC8347CVRADDB - NXP

Description: Microprocessors - MPU 8347 PBGA NO-PB W/O ENC

Download MPC8347CVRADDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MPC8347CVRADDB - NXP - PCB symbol
click to zoom
PCB Footprints

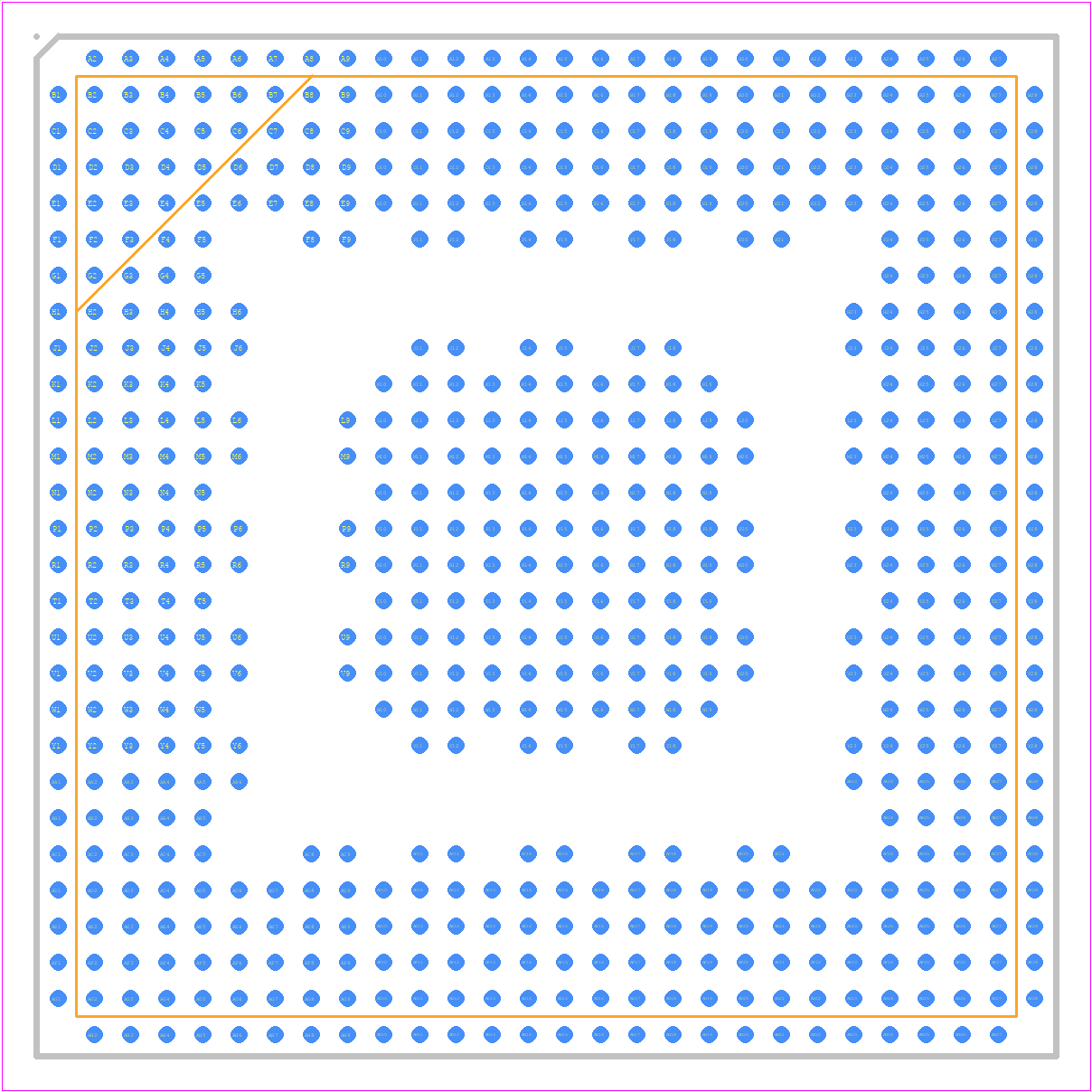

MPC8347CVRADDB - NXP PCB footprint - BGA - BGA - MPC8347CVRADDB
click to zoom
3D Models
MPC8347CVRADDB - NXP - 3D model - BGA - MPC8347CVRADDB
click to zoom

MPC8347CVRADDB Details

  • Manufacturer Part Number:

    MPC8347CVRADDB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    BGA-620

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B620

  • JESD-609 Code:

    e2

  • Length:

    29 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    620

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA620,28X28,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.46 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    29 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MPC8347CVRADDB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MPC8347CVRADDB is -40°C to 105°C (industrial temperature range) and -40°C to 125°C (extended temperature range) for certain packages.
  • The DDR2 memory interface on the MPC8347CVRADDB can be configured using the DDR2 controller registers. The configuration involves setting the memory timing parameters, such as clock frequency, CAS latency, and burst length, as well as enabling/disabling features like ECC and write leveling.
  • Yes, the MPC8347CVRADDB can be used with non-NXP DDR2 memory components, but it is recommended to use NXP-approved memory components to ensure compatibility and optimal performance. Additionally, the memory component must meet the DDR2 specification and the MPC8347CVRADDB's memory interface requirements.
  • The MPC8347CVRADDB has a built-in power management unit (PMU) that allows for dynamic voltage and frequency scaling. Power management can be implemented using the PMU registers to control the voltage and frequency of the processor, as well as to enable/disable power-saving features like doze mode and nap mode.
  • The maximum bandwidth of the Gigabit Ethernet interface on the MPC8347CVRADDB is 1000 Mbps (1 Gbps) in full-duplex mode.
