MPC8347CZUAGDB - NXP

Description: Power QUICC, 32 Bit Power Arch SoC, 400MHz, DDR1/2, PCI, 1GbE, USB, -40 to 105C, Rev 2.

Download MPC8347CZUAGDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MPC8347CZUAGDB - NXP - PCB symbol
click to zoom
PCB Footprints

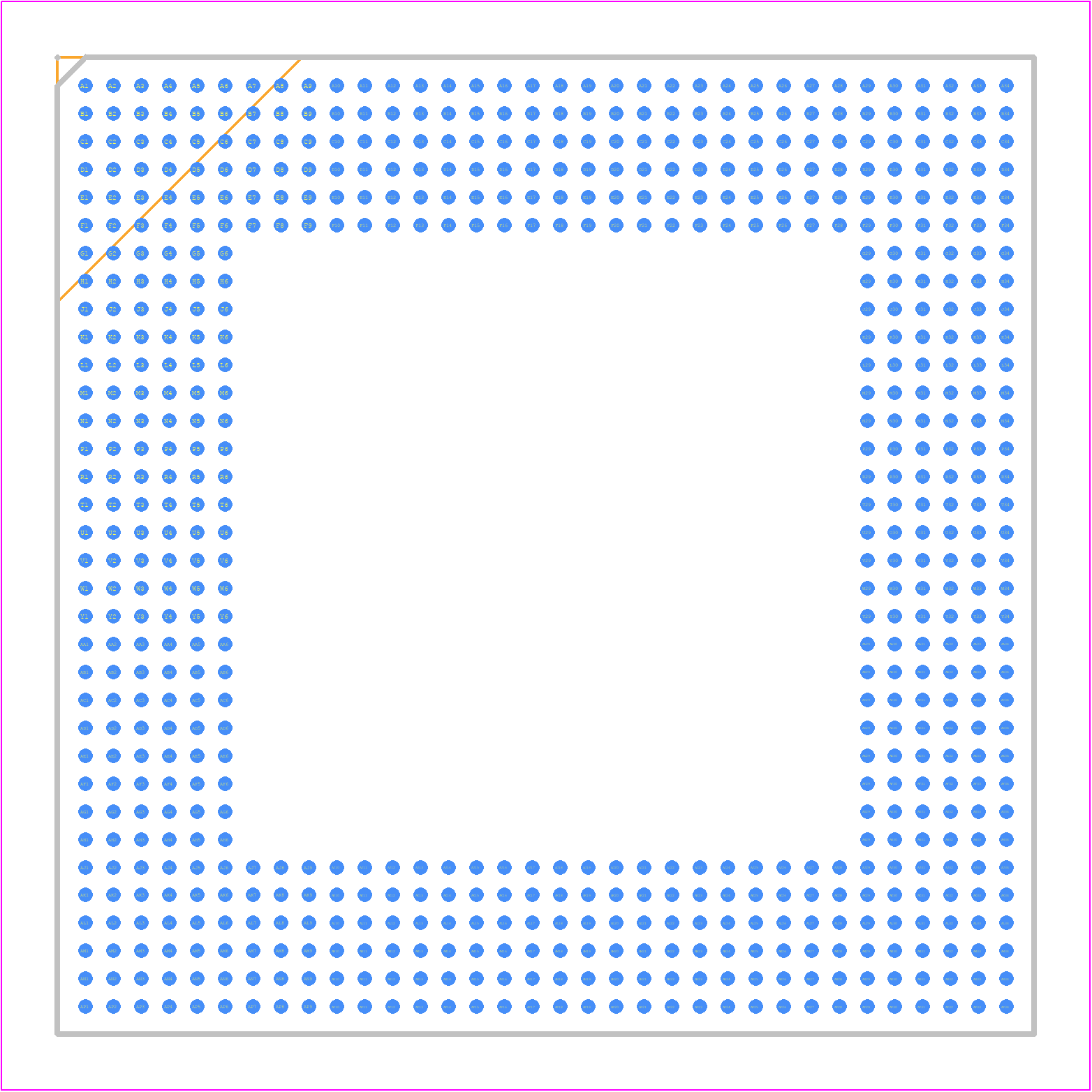

MPC8347CZUAGDB - NXP PCB footprint - BGA - BGA - 672-TBGA
click to zoom
3D Models
MPC8347CZUAGDB - NXP - 3D model - BGA - 672-TBGA
click to zoom

MPC8347CZUAGDB Details

  • Manufacturer Part Number:

    MPC8347CZUAGDB

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TBGA-672

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B672

  • JESD-609 Code:

    e0

  • Length:

    35 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    672

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA672,34X34,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.69 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    35 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MPC8347CZUAGDB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MPC8347CZUAGDB is -40°C to 105°C.
  • The DDR2 memory interface on the MPC8347CZUAGDB can be configured using the DDR2 controller registers. Refer to the MPC8347CZUAGDB reference manual for detailed information on configuring the DDR2 memory interface.
  • The maximum frequency of the e300 core on the MPC8347CZUAGDB is 667 MHz.
  • The PCI Express interface on the MPC8347CZUAGDB can be used by configuring the PCI Express controller registers and implementing a PCI Express device driver. Refer to the MPC8347CZUAGDB reference manual for detailed information on using the PCI Express interface.
  • The power consumption of the MPC8347CZUAGDB varies depending on the operating frequency and voltage. Refer to the MPC8347CZUAGDB datasheet for detailed power consumption information.
