MPC8349EVVALFB - NXP

Description: Microprocessors - MPU 8349 TBGA NO PB W/ ENC

Download MPC8349EVVALFB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

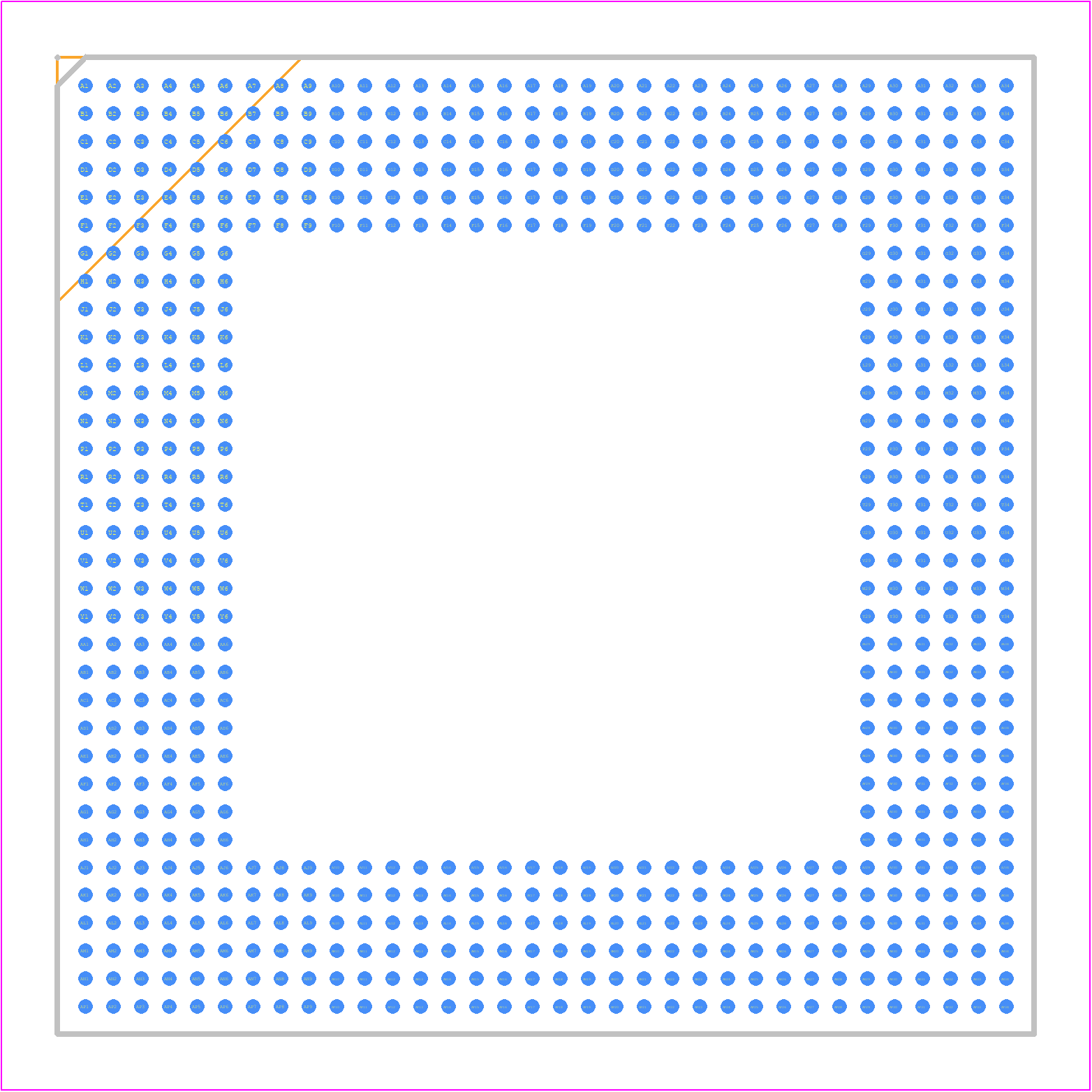

MPC8349EVVALFB - NXP PCB footprint - BGA - BGA - 672-TBGA
click to zoom
3D Models
MPC8349EVVALFB - NXP  - 3D model - BGA - 672-TBGA
click to zoom

MPC8349EVVALFB Details

  • Manufacturer Part Number:

    MPC8349EVVALFB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TBGA-672

  • ECCN Code:

    5A002.A.1

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B672

  • Length:

    35 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    672

  • Operating Temperature-Max:

    105 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA672,34X34,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.69 mm

  • Supply Voltage-Max:

    1.36 V

  • Supply Voltage-Min:

    1.24 V

  • Supply Voltage-Nom:

    1.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    35 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MPC8349EVVALFB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MPC8349EVVALFB is -40°C to 105°C.
  • The DDR memory interface on the MPC8349EVVALFB can be configured using the DDR controller registers. Refer to the MPC8349EVVALFB user manual for detailed configuration instructions.
  • The maximum clock frequency supported by the MPC8349EVVALFB is 667 MHz.
  • The MPC8349EVVALFB has a built-in power management unit (PMU) that can be configured to manage power consumption. Refer to the MPC8349EVVALFB user manual for detailed instructions on implementing power management.
  • The JTAG interface on the MPC8349EVVALFB is used for debugging and testing purposes. It allows developers to access the internal registers and memory of the processor.
