MPC8349VVALFB - NXP

Description: Microprocessors - MPU 8349 TBGA NO-PB W/O ENC

Download MPC8349VVALFB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

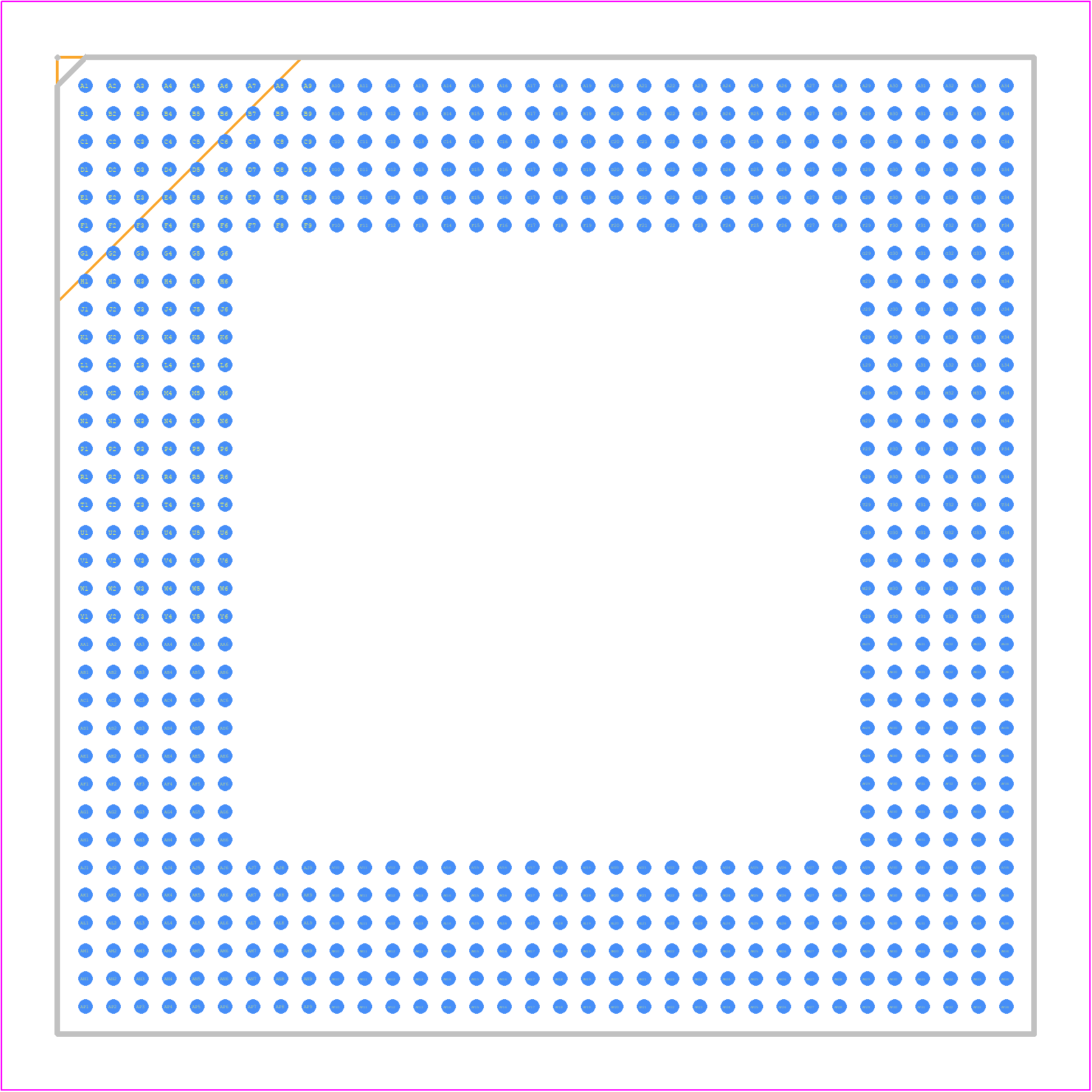

MPC8349VVALFB - NXP PCB footprint - BGA - BGA - MPC8349VVALFB-12
click to zoom
3D Models
MPC8349VVALFB - NXP  - 3D model - BGA - MPC8349VVALFB-12
click to zoom

MPC8349VVALFB Details

  • Manufacturer Part Number:

    MPC8349VVALFB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    TBGA-672

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B672

  • Length:

    35 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    672

  • Operating Temperature-Max:

    105 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA672,34X34,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.69 mm

  • Supply Voltage-Max:

    1.36 V

  • Supply Voltage-Min:

    1.24 V

  • Supply Voltage-Nom:

    1.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    35 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MPC8349VVALFB Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MPC8349VVALFB is -40°C to 105°C.
  • The DDR2 memory interface on the MPC8349VVALFB can be configured using the DDR2 controller registers. Refer to the MPC8349VVALFB reference manual for detailed information on configuring the DDR2 interface.
  • The maximum frequency of the e300 core on the MPC8349VVALFB is 667 MHz.
  • The MPC8349VVALFB has a built-in watchdog timer that can be implemented using the Power Management Controller (PMC). Refer to the MPC8349VVALFB reference manual for detailed information on implementing the watchdog timer.
  • The MPC8349VVALFB can support up to 128 MB of flash memory.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPC8349VVALFB Overview

Use the download button to access the MPC8349VVALFB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPC83, or try a keyword search, such as Microprocessors
