MPC8377CVRANGA - NXP

Description: IC MPU MPC83XX 800MHZ PBGA689

Download MPC8377CVRANGA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

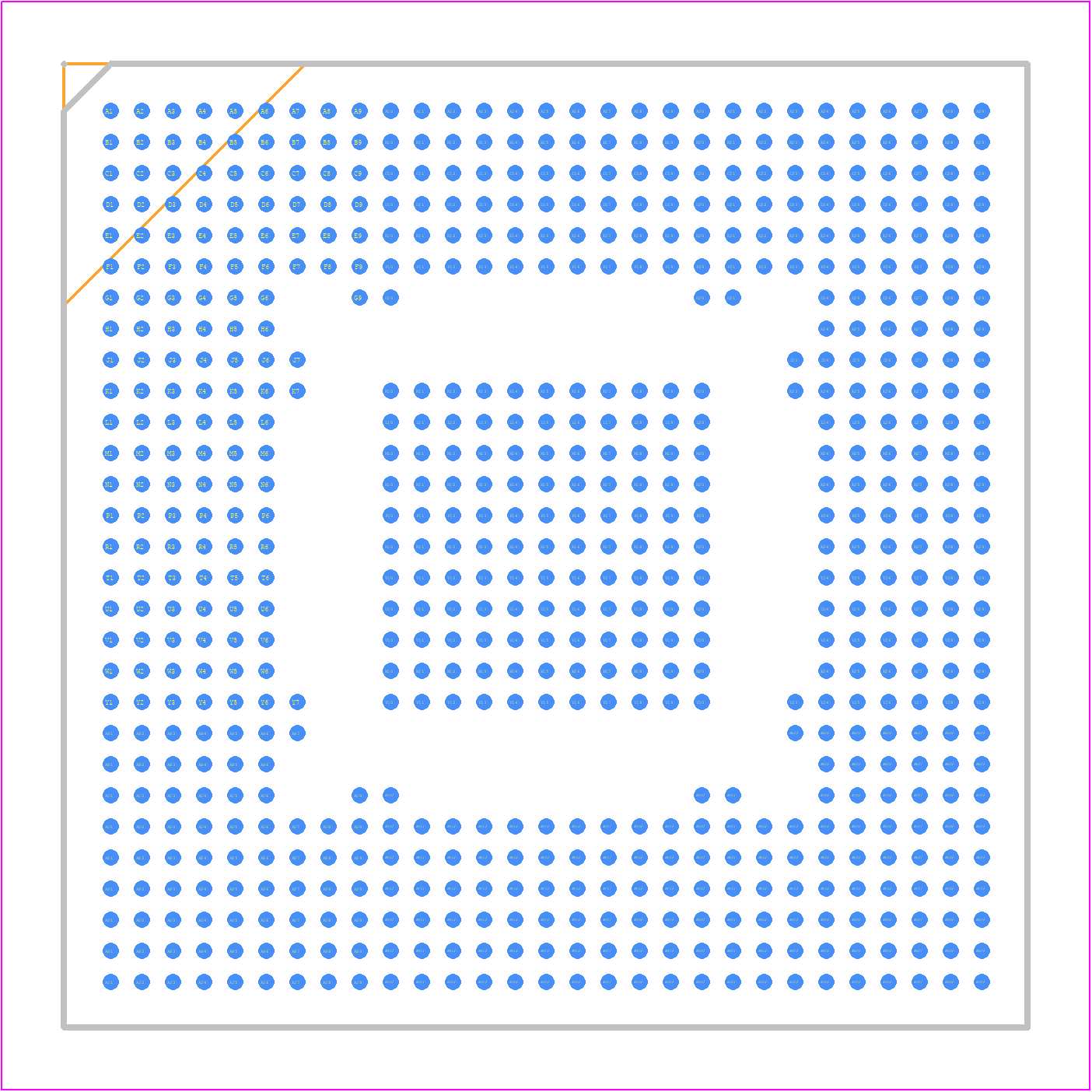

MPC8377CVRANGA - NXP PCB footprint - BGA - BGA - SOT1745-1
click to zoom
3D Models
MPC8377CVRANGA - NXP  - 3D model - BGA - SOT1745-1
click to zoom

MPC8377CVRANGA Details

  • Manufacturer Part Number:

    MPC8377CVRANGA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    BGA2-689

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • JESD-30 Code:

    S-PBGA-B689

  • JESD-609 Code:

    e2

  • Length:

    31 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    689

  • Operating Temperature-Max:

    125 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HBGA

  • Package Equivalence Code:

    BGA689,29X29,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.46 mm

  • Supply Voltage-Max:

    1.1 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    1.05 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    31 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

MPC8377CVRANGA Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the core voltage (VDD) first, followed by the I/O voltage (VDDIO). This ensures that the internal voltage regulators are powered up correctly.
  • The DDR2 memory interface on the MPC8377CVRANGA can be configured using the DDR2 controller registers. The configuration involves setting the memory timing parameters, such as the clock frequency, CAS latency, and RAS-to-CAS delay, using the DDR2 controller registers.
  • The maximum operating frequency of the MPC8377CVRANGA is 667 MHz. However, the actual operating frequency may be limited by the specific application and the thermal design of the system.
  • Secure boot on the MPC8377CVRANGA can be implemented using the Secure Boot mechanism, which involves storing the boot code in a secure flash memory and using the Secure Boot ROM to authenticate the boot code. The Secure Boot mechanism ensures that only authorized code can be executed on the processor.
  • The Error Correction Code (ECC) on the MPC8377CVRANGA is used to detect and correct single-bit errors in the DDR2 memory. The ECC mechanism ensures that data integrity is maintained in the event of a single-bit error.
