MPC8535BVJATLA - NXP

Description: Microprocessors - MPU PowerQUICC 32 Bit Power Arch SoC

Download MPC8535BVJATLA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MPC8535BVJATLA - NXP - PCB symbol
click to zoom
PCB Footprints

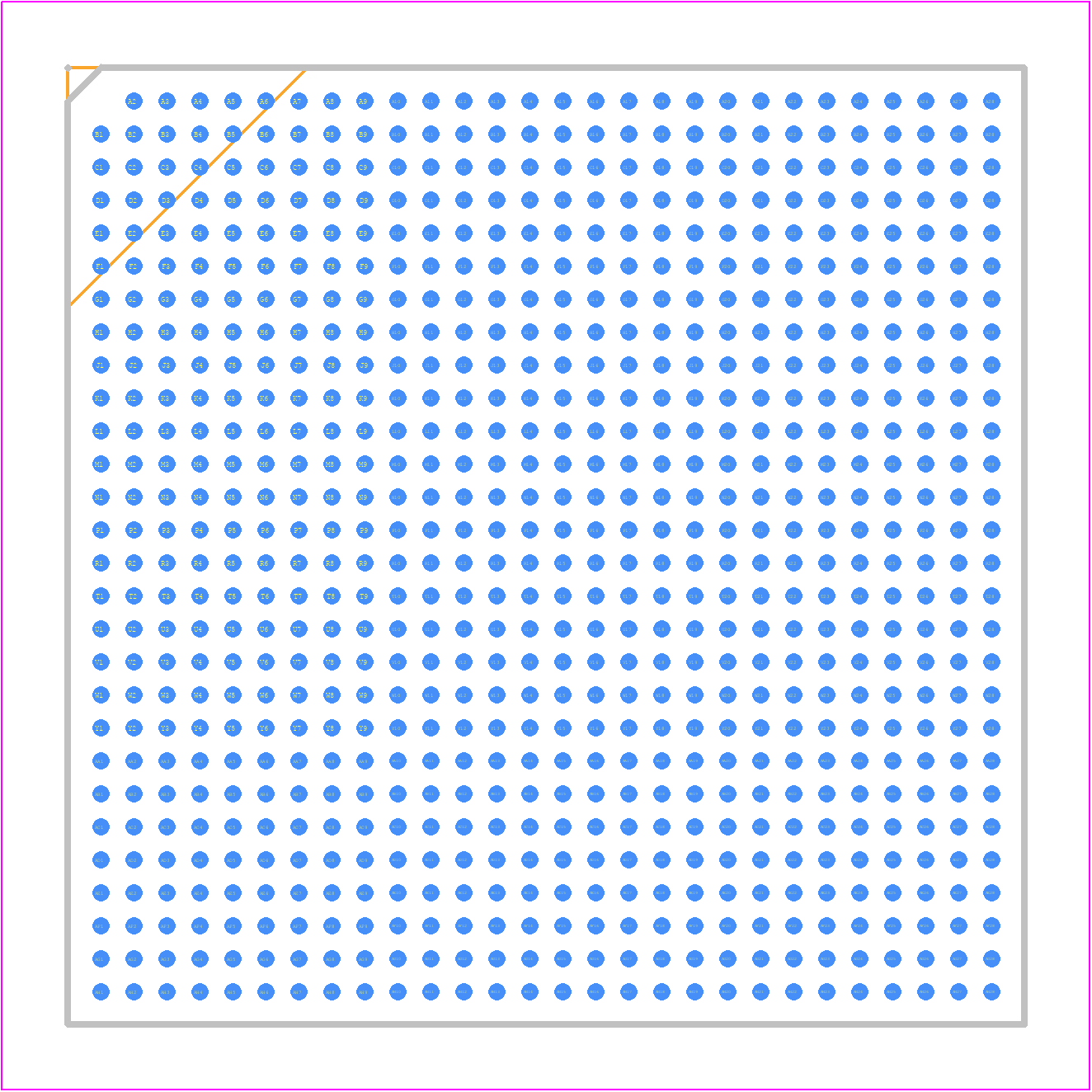

MPC8535BVJATLA - NXP PCB footprint - BGA - BGA - MPC8535BVJATLA
click to zoom
3D Models
MPC8535BVJATLA - NXP - 3D model - BGA - MPC8535BVJATLA
click to zoom

MPC8535BVJATLA Details

  • Manufacturer Part Number:

    MPC8535BVJATLA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    FCBGA-783

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Address Bus Width:

    16

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • External Data Bus Width:

    64

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PBGA-B783

  • JESD-609 Code:

    e2

  • Length:

    29 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    783

  • Operating Temperature-Max:

    105 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.76 mm

  • Speed:

    1250 MHz

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver (Sn/Ag)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    29 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROPROCESSOR

MPC8535BVJATLA Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the MPC8535BVJATLA is -40°C to 105°C (industrial temperature range). However, it's recommended to check the specific temperature range for your application and ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
  • The DDR2 memory interface on the MPC8535BVJATLA can be configured using the DDR2 controller registers. You need to set the memory timing parameters, such as clock frequency, CAS latency, and burst length, according to the DDR2 memory module specifications. You can refer to the MPC8535BVJATLA reference manual and the DDR2 memory module datasheet for more information.
  • The MPC8535BVJATLA is designed to operate at a core voltage of 1.0V. However, it's possible to operate the device at a lower voltage, such as 0.9V or 0.95V, but this may affect the device's performance and power consumption. It's recommended to consult with NXP Semiconductors or a qualified engineer to determine the feasibility and potential impact of operating the device at a different voltage.
  • The MPC8535BVJATLA has a built-in secure boot mechanism that uses a combination of hardware and software components to ensure the authenticity and integrity of the boot process. You need to implement a secure boot loader that uses the device's security features, such as the Secure Hash Algorithm (SHA) and the Advanced Encryption Standard (AES), to validate the boot image and ensure that it has not been tampered with. You can refer to the MPC8535BVJATLA reference manual and NXP Semiconductors' secure boot documentation for more information.
  • The MPC8535BVJATLA has a PCIe interface that supports up to 4 lanes, with a maximum bandwidth of 1 GB/s per lane. This means that the maximum bandwidth of the PCIe interface is 4 GB/s. However, the actual bandwidth may be lower depending on the specific application and the devices connected to the PCIe interface.
