MPC8536EAVTATGA - NXP

MPC8536EAVTATGA Details

• Manufacturer Part Number:

  MPC8536EAVTATGA

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Address Bus Width:

  32

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  133 MHz

• External Data Bus Width:

  32

• Format:

  FLOATING POINT

• JESD-30 Code:

  S-PBGA-B783

• JESD-609 Code:

  e2

• Length:

  29 mm

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  783

• Operating Temperature-Max:

  90 °C

• Package Body Material:

  PLASTIC/EPOXY

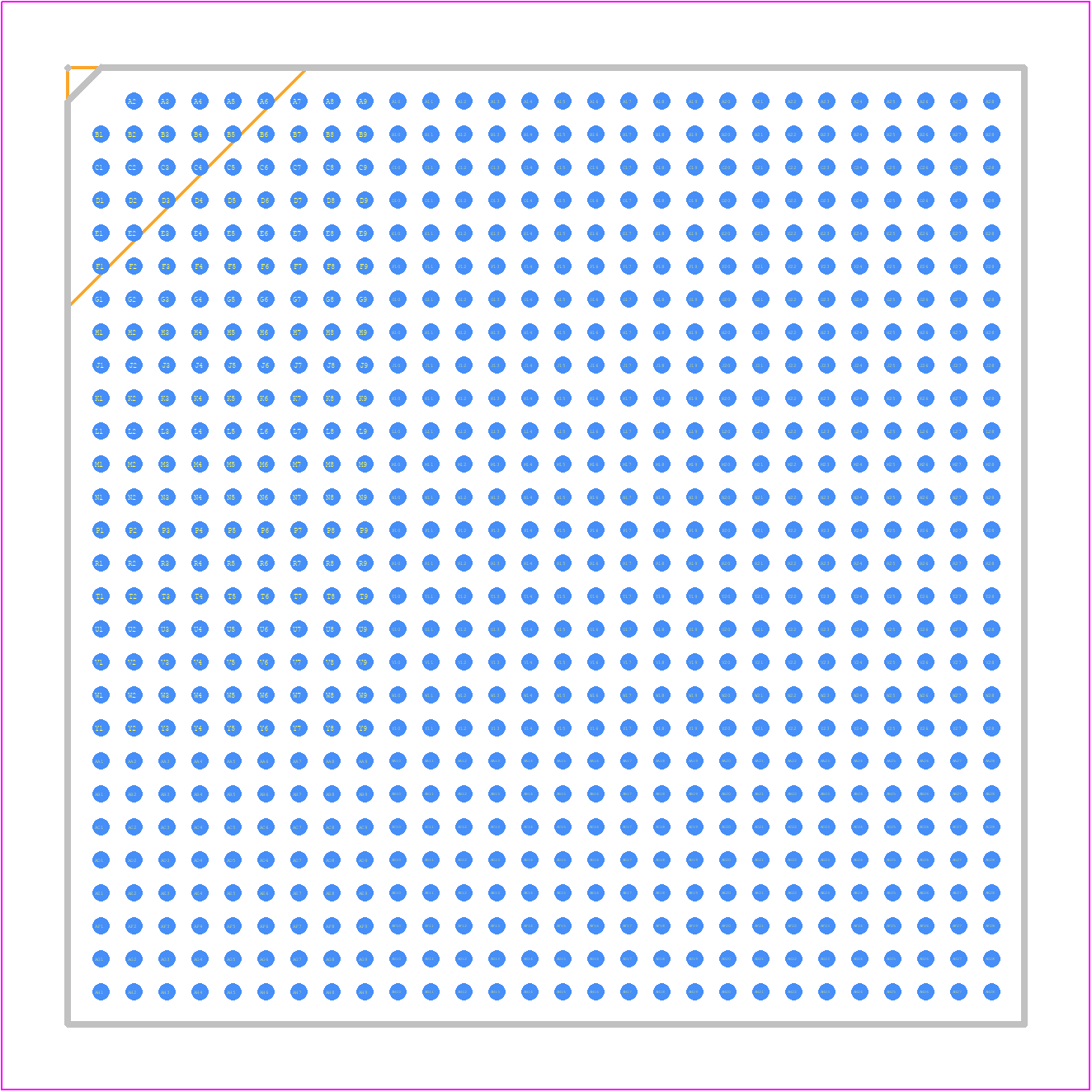

• Package Code:

  BGA

• Package Equivalence Code:

  BGA783,28X28,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.8 mm

• Speed:

  1250 MHz

• Supply Voltage-Max:

  1.05 V

• Supply Voltage-Min:

  0.95 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Terminal Finish:

  Tin/Silver (Sn/Ag)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  29 mm

• uPs/uCs/Peripheral ICs Type:

  MICROPROCESSOR, RISC
