Part Image

MPC9817EN - Renesas Electronics

Description: The MPC9817 is a PLL-based clock generator specifically designed for Freescale Semiconductor Microprocessor and Microcontroller applications including the PowerPC and PowerQUICC. This device generates the microprocessor input clock and other microprocessor system and bus clocks at any one of four output frequencies. These frequencies include the popular 33- and 66-MHz PCI bus frequencies. The device offers five low-skew clock outputs plus three reference outputs. The clock input reference is 25 MHz and may

Download MPC9817EN Model

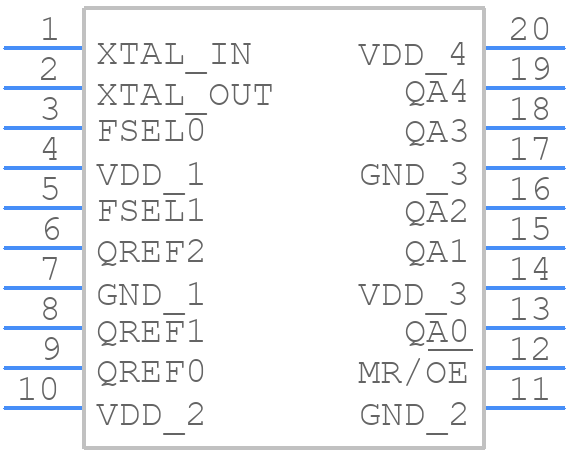

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MPC9817EN - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - MPC9817EN
click to zoom
3D Models
MPC9817EN - Renesas Electronics  - 3D model - Small Outline Packages - MPC9817EN
click to zoom

MPC9817EN Details

  • Manufacturer Part Number:

    MPC9817EN

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QSOP

  • Pin Count:

    20

  • Manufacturer Package Code:

    PCG20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    3

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, PROCESSOR SPECIFIC

MPC9817EN Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note AN12271, which includes guidelines for component placement, routing, and thermal management to minimize EMI and thermal issues.
  • The MPC9817EN has a low-power mode that can be configured by setting the PMCTRL register. In low-power mode, the device can consume as low as 10uA. Refer to the datasheet section 10.3 for more details on power consumption characteristics in low-power mode.
  • The MPC9817EN has an operating temperature range of -40°C to 125°C. The device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C. Refer to the datasheet section 6.1 for more details on temperature-related specifications.
  • The MPC9817EN has built-in OVP and UVP features that can be enabled through the OVCTRL and UVCTRL registers. Additionally, external components such as resistors and Zener diodes can be used to implement OVP and UVP. Refer to the datasheet section 10.2 for more details on OVP and UVP implementation.
  • Renesas recommends using decoupling capacitors with values of 10uF and 100nF, placed as close as possible to the VCC and GND pins of the device. Refer to the datasheet section 10.1 for more details on decoupling capacitor placement and values.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPC9817EN Overview

Use the download button to access the MPC9817EN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPC98, or try a keyword search, such as Clock Generators
