MPG206NPC - TE Connectivity

MPG206NPC Details

• Manufacturer Part Number:

  MPG206NPC

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.35

• Factory Lead Time:

  17 Weeks

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Actuator Color:

  NATURAL

• Actuator Length:

  0.315 inch

• Actuator Material:

  PHENOL RESIN

• Actuator Travel:

  3.5052 mm

• Actuator Type:

  PUSHBUTTON

• Body Breadth:

  12.954 mm

• Body Height:

  33.147 mm

• Body Length or Diameter:

  12.954 mm

• Bushing Diameter:

  0.469 inch

• Bushing Type:

  15/32-32

• Center Contact Plating:

  GOLD OVER SILVER

• Contact (AC) Max Rating R Load:

  3A@250VAC

• Contact Current(AC)-Max:

  6 A

• Contact Current(DC)-Max:

  6 A

• Contact (DC) Max Rating R Load:

  4A@28VDC

• Contact Function:

  ON-OFF

• Contact Resistance:

  0.01 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  1500VAC V

• Electrical Life:

  50000 Cycle(s)

• End Contact Material:

  SILVER OVER COPPER

• End Contact Plating:

  GOLD

• Housing Material:

  THERMOSET

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  THERMOSET 94V-0

• Mounting Feature:

  PANEL MOUNT

• Number of Independent Keys:

  1

• Operating Force-Max:

  11.9952 N

• Operating Temperature-Max:

  80 °C

• Operating Temperature-Min:

  -20 °C

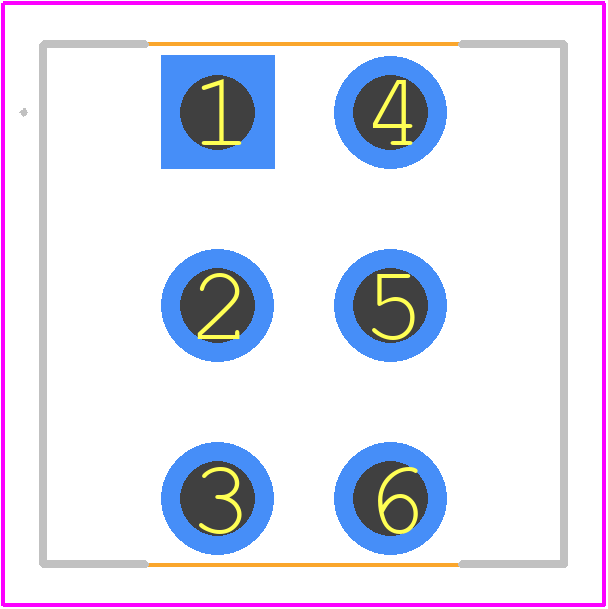

• PCB Hole Count:

  6

• Packing Method:

  BULK

• Sealing:

  MOLDED

• Solderability:

  HAND

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  DPDT

• Switch Type:

  PUSHBUTTON SWITCH

• Terminal Length:

  0.245 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  WIRE

• Washability:

  SOLVENT
