MPH-4P(AG) - Daito

Description: PCB-mount fuseholder in Daito’s MP series, designed for printed circuit board installation with alarm contact functionality. It features a standard-rated voltage of 125 V AC/DC and supports up to 7.5 A continuous current. Constructed for high reliability, it offers 1500 V isolation between alarm/load terminals and load/ground, ≥100 MΩ insulation resistance, and ≤5 mΩ contact resistance per terminal

Download MPH-4P(AG) Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this MPH-4P(AG) model

Email notifications will be applied after download.

Send part feedback

Symbol

MPH-4P(AG) - Daito - PCB symbol

PCB Footprints

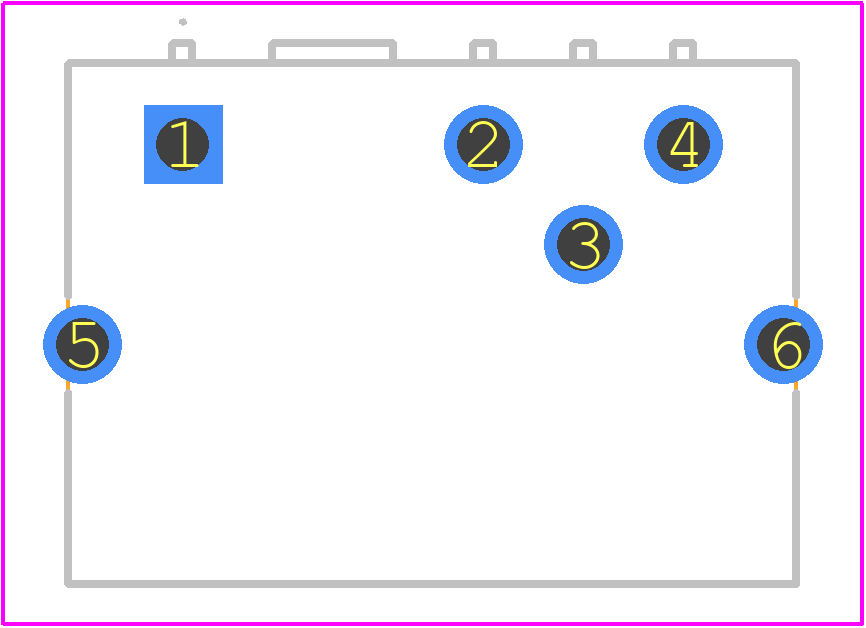

MPH-4P(AG) - Daito PCB footprint - Other - Other - MPH-4P(AG)-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for MPH-4P(AG)
Part Number MPH-4P(AG)
Manufacturer Daito
Pin Count 6
Part Category Hardware
Package Category Other
Footprint Name Other - MPH-4P(AG)-1
Released Date Jun 20, 2025
Last Modified Date Jun 20, 2025 7:25 AM UTC
Pinout / Pin List Click Here (Member Only)

MPH-4P(AG) Details

Manufacturer Part Number:
MPH-4P(AG)
Manufacturer:
Daito Communication Apparatus Co Ltd

Trust Checks

Community Provided

System Verified

Community Approved

MPH-4P(AG) Overview

Use the download button to access the MPH-4P(AG) schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MPH-4, or try a keyword search, such as Fixed Resistors
