MPL-AL5050-100 - Monolithic Power Systems (MPS)

Description: FIXED IND 10UH 4.8A 37 MOHM SMD, 10 µH Unshielded Molded Inductor 4.8 A 37mOhm 2-SMD

Download MPL-AL5050-100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

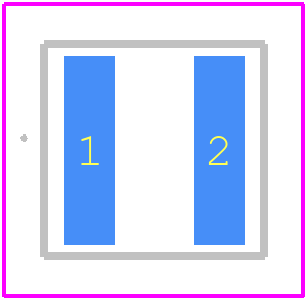

MPL-AL5050-100 - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MPL-AL5050-100
click to zoom
3D Models
MPL-AL5050-100 - Monolithic Power Systems (MPS)  - 3D model - Other - MPL-AL5050-100
click to zoom

MPL-AL5050-100 Details

  • Manufacturer Part Number:

    MPL-AL5050-100

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    6.4

  • Construction:

    Rectangular

  • DC Resistance:

    0.037 Ω

  • Inductance-Nom (L):

    10 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Style:

    SMT

  • Packing Method:

    Bulk

  • Rated Current-Max:

    4.8 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    ONE SURFACE
