MPL-AL5050-5R6 - Monolithic Power Systems (MPS)

Description: Power Inductors - SMD Low Resistance Series, size dimension: 5050, Inductance value: 5.6uH

Download MPL-AL5050-5R6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

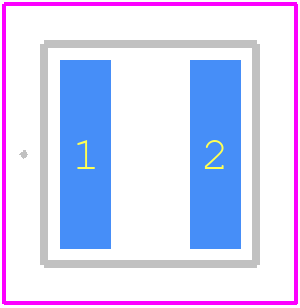

MPL-AL5050-5R6 - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MPL-AL5050-5R6-2
click to zoom
3D Models
MPL-AL5050-5R6 - Monolithic Power Systems (MPS)  - 3D model - Other - MPL-AL5050-5R6-2
click to zoom

MPL-AL5050-5R6 Details

  • Manufacturer Part Number:

    MPL-AL5050-5R6

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    6.4

  • Construction:

    Rectangular

  • DC Resistance:

    0.02 Ω

  • Inductance-Nom (L):

    5.6 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Package Style:

    SMT

  • Packing Method:

    Bulk

  • Rated Current-Max:

    6.8 A

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    NO

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    ONE SURFACE

MPL-AL5050-5R6 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MPL-AL5050-5R6 involves placing the input and output capacitors close to the device, using wide traces for the input and output lines, and separating the input and output grounds to minimize noise coupling. A 4-layer PCB with a solid ground plane is also recommended.
  • To ensure stability and prevent oscillations, it's essential to follow the recommended output capacitor selection guidelines, use a low-ESR output capacitor, and ensure that the output voltage is within the specified range. Additionally, adding a small ceramic capacitor (e.g., 10nF) in parallel with the output capacitor can help to dampen oscillations.
  • While the datasheet specifies an operating temperature range of -40°C to 125°C, the maximum ambient temperature for reliable operation is typically around 85°C to 90°C, depending on the specific application and thermal design. Exceeding this temperature may lead to reduced reliability and lifespan.
  • Yes, the MPL-AL5050-5R6 is suitable for high-reliability and automotive applications, as it meets the relevant industry standards (e.g., AEC-Q100) and has undergone rigorous testing and qualification. However, it's essential to consult with Monolithic Power Systems' application engineers to ensure that the device meets the specific requirements of your application.
  • To troubleshoot issues with the output voltage or current, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting common issues.
