Part Image

MPL115A2 - NXP

Description: Digital Barometer,50-115kPa,I2C,LGA8 MPL115A2, Absolute Pressure Sensor, 115kPa 8-Pin LGA

Download MPL115A2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

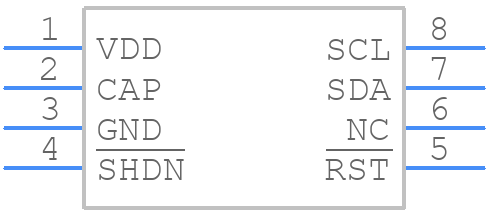

Symbol
MPL115A2 - NXP - PCB symbol
click to zoom
PCB Footprints
MPL115A2 - NXP PCB footprint - Other - Other - MPL115A2-1
click to zoom
3D Models
MPL115A2 - NXP - 3D model - Other - MPL115A2-1
click to zoom

MPL115A2 Details

  • Manufacturer Part Number:

    MPL115A2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Body Breadth:

    3 mm

  • Body Height:

    1.2 mm

  • Body Length or Diameter:

    5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    10

  • Operating Current-Max:

    0.006 mA

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    HOLE

  • Pressure Range-Max:

    16.67 Psi

  • Pressure Range-Min:

    7.25 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Sensors/Transducers Type:

    PRESSURE SENSOR, MEMS, PIEZORESISTIVE

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.375 V

  • Surface Mount:

    YES

  • Termination Type:

    SOLDER

MPL115A2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the MPL115A2 involves keeping the sensor away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the sensor and the microcontroller. A 4-layer PCB with a dedicated ground plane is recommended.
  • The MPL115A2 requires a two-point calibration process. First, apply a known pressure (e.g., atmospheric pressure) and read the output voltage. Then, apply a second known pressure (e.g., vacuum) and read the output voltage. Use these two points to calculate the sensitivity and offset of the sensor.
  • To prevent damage to the sensor, it is recommended to power on the MPL115A2 in the following sequence: VDD, then VCC, and finally the clock signal. Power off in the reverse sequence.
  • The MPL115A2 has an internal temperature sensor that can be used for temperature compensation. The temperature data can be read from the sensor and used to correct the pressure reading using the temperature coefficient provided in the datasheet.
  • The MPL115A2 can measure pressures up to 115 kPa (16.7 psi), but it is recommended to operate within the specified range of 50 kPa to 110 kPa (7.3 psi to 16 psi) for optimal accuracy.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPL115A2 Overview

Use the download button to access the MPL115A2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPL11, or try a keyword search, such as Pressure Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
