MPL3115A2ST1 - NXP

Description: Board Mount Pressure Sensors Horizon I2C ST 1.95 V to 3.6 V,(1.62 V to 3.6 V, −40 °C to 85 °C

Download MPL3115A2ST1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

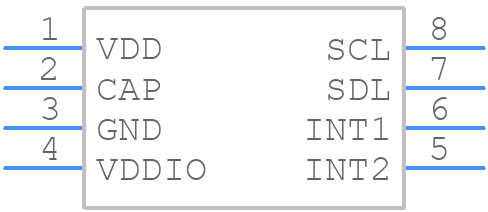

MPL3115A2ST1 - NXP - PCB symbol
click to zoom
PCB Footprints
MPL3115A2ST1 - NXP PCB footprint - Other - Other - SOT1768-1
click to zoom
3D Models
MPL3115A2ST1 - NXP - 3D model - Other - SOT1768-1
click to zoom

MPL3115A2ST1 Details

  • Manufacturer Part Number:

    MPL3115A2ST1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LGA-8

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    5 mm

  • Housing:

    UNSPECIFIED

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    20

  • Operating Current-Max:

    2 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Range:

    0.10-0.90V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Shape/Style:

    RECTANGULAR

  • Port Type:

    HOLE

  • Pressure Range-Max:

    15.9 Psi

  • Pressure Range-Min:

    2.9 Psi

  • Pressure Sensing Mode:

    ABSOLUTE

  • Sensors/Transducers Type:

    PRESSURE SENSOR, MEMS, PIEZORESISTIVE

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.95 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Termination Type:

    SOLDER

MPL3115A2ST1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the MPL3115A2ST1 involves placing the sensor at the edge of the board, away from other components, and using a dedicated ground plane to minimize noise and interference. A 4-layer PCB with a solid ground plane is recommended.
  • The MPL3115A2ST1 does not require calibration out of the box, as it is factory-calibrated. However, if you need to recalibrate the sensor, you can use the built-in calibration mode by setting the CAL bit in the CTRL_REG1 register. You will need to provide a known pressure reference point for calibration.
  • The MPL3115A2ST1 can measure pressures up to 115 kPa, which corresponds to an altitude of approximately 10,000 meters (33,000 feet) above sea level.
  • The MPL3115A2ST1 has built-in temperature compensation, but you may need to apply additional temperature compensation depending on your specific application. You can use the temperature data from the sensor to correct for temperature effects on pressure measurements.
  • The MPL3115A2ST1 has a typical current consumption of 10 μA in standby mode and 200 μA in active mode. The power consumption can be further reduced by using the low-power mode or by adjusting the measurement frequency.
