MPL360B-I/Y8X - Microchip

Description: Network Controller & Processor ICs TQFP48, Green, IND, MRLB, No Flash, Tray

Download MPL360B-I/Y8X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

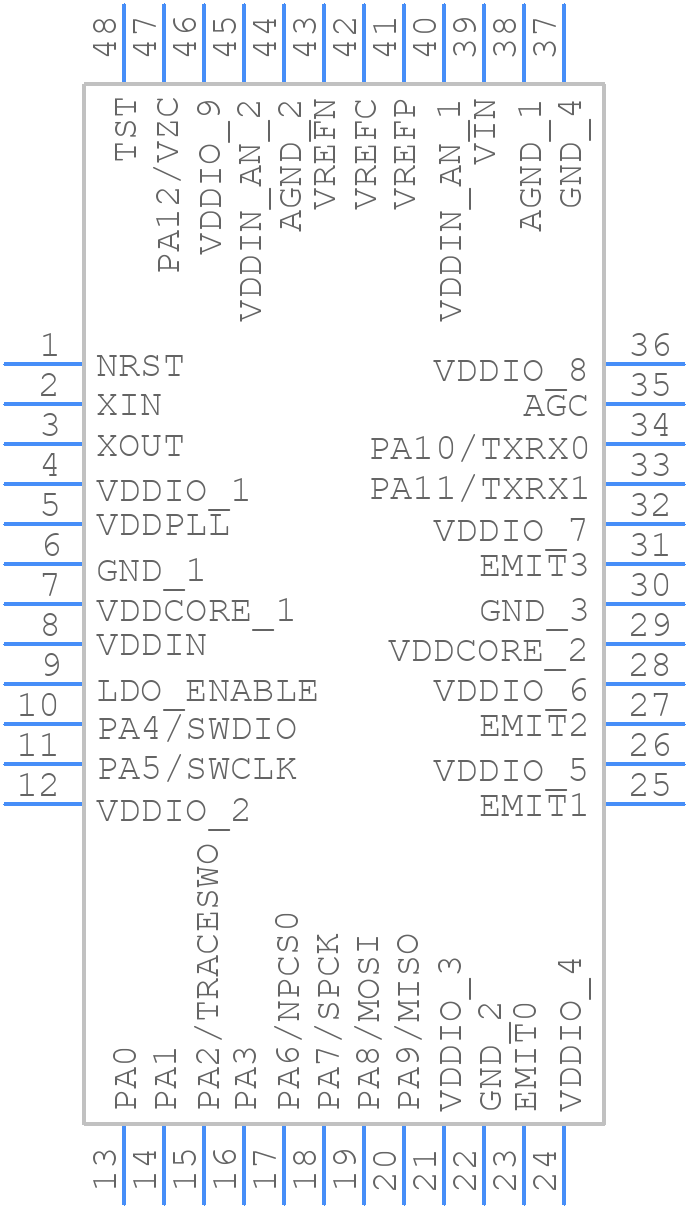

MPL360B-I/Y8X - Microchip - PCB symbol
click to zoom
PCB Footprints
MPL360B-I/Y8X - Microchip PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP48
click to zoom
3D Models
MPL360B-I/Y8X - Microchip - 3D model - Quad Flat Packages - TQFP48
click to zoom

MPL360B-I/Y8X Details

  • Manufacturer Part Number:

    MPL360B-I/Y8X

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    48

  • Manufacturer Package Code:

    TQFP-48

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    2 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    18

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    MODEM

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

MPL360B-I/Y8X Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Calibration involves adjusting the internal offset and gain of the sensor. Use the built-in self-test function to determine the offset and gain values, and then adjust the internal registers accordingly.
  • The MPL360B-I/Y8X can operate from -40°C to +125°C, but the accuracy and stability of the sensor may degrade at extreme temperatures.
  • Yes, the MPL360B-I/Y8X is designed to withstand high-vibration environments, but it's recommended to follow proper mounting and installation procedures to ensure reliable operation.
  • The MPL360B-I/Y8X can be interfaced with a microcontroller using the I2C or SPI protocol. Use the datasheet to determine the correct pin connections and communication protocols.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MPL360B-I/Y8X Overview

Use the download button to access the MPL360B-I/Y8X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPL36, or try a keyword search, such as Modems

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
