MPM-20-12 - Mean Well

MPM-20-12 Details

• Manufacturer Part Number:

  MPM-20-12

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  PACKAGE-4

• ECCN Code:

  EAR99

• Factory Lead Time:

  19 Weeks, 3 Days

• Manufacturer:

  Mean Well

• YTEOL:

  7

• Additional Feature:

  113 TO 370VDC INPUT ALSO AVAILABLE

• Analog IC - Other Type:

  AC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  CB, CE, EAC, IEC, UKCA

• Efficiency (Main Output):

  85.5%

• Input Voltage-Max:

  264 V

• Input Voltage-Min:

  80 V

• Input Voltage-Nom:

  115 V

• JESD-30 Code:

  R-XDMA-P4

• Length:

  52.4 mm

• Line Regulation-Max:

  0.3%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

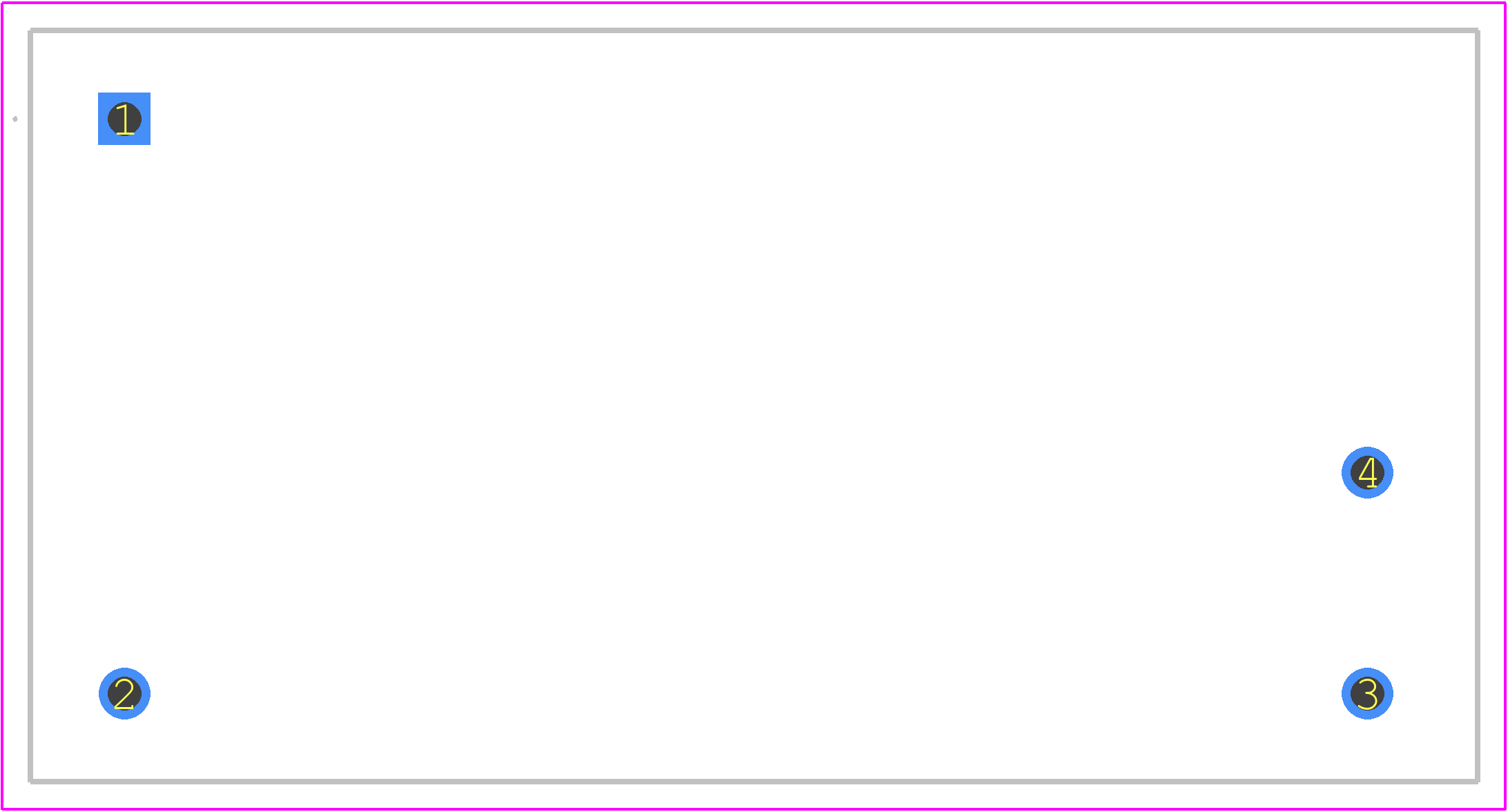

• Number of Terminals:

  4

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -35 °C

• Output Current-Max:

  1.98 A

• Output Voltage-Max:

  12.24 V

• Output Voltage-Min:

  11.76 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,4LEAD,1.7

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OVER LOAD; OVER VOLTAGE; OVER TEMPERATURE

• Ripple Voltage (Main Out):

  0.053025 Vrms

• Screening Level:

  IEC 60601-1

• Seated Height-Max:

  24.5 mm

• Surface Mount:

  YES

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  21.6 W

• Trim/Adjustable Output:

  YES

• Warm-up Time:

  1.53 s

• Width:

  27.2 mm
