MPM12-1K5P - Advanced Energy

Description: DC/DC Converters - Through Hole MPM-Series DC to HVDC Converter, Single output (Unipolar), +12V Input, +1500V HVout, 1.5W, Thru-hole mount, Proportional.

Download MPM12-1K5P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

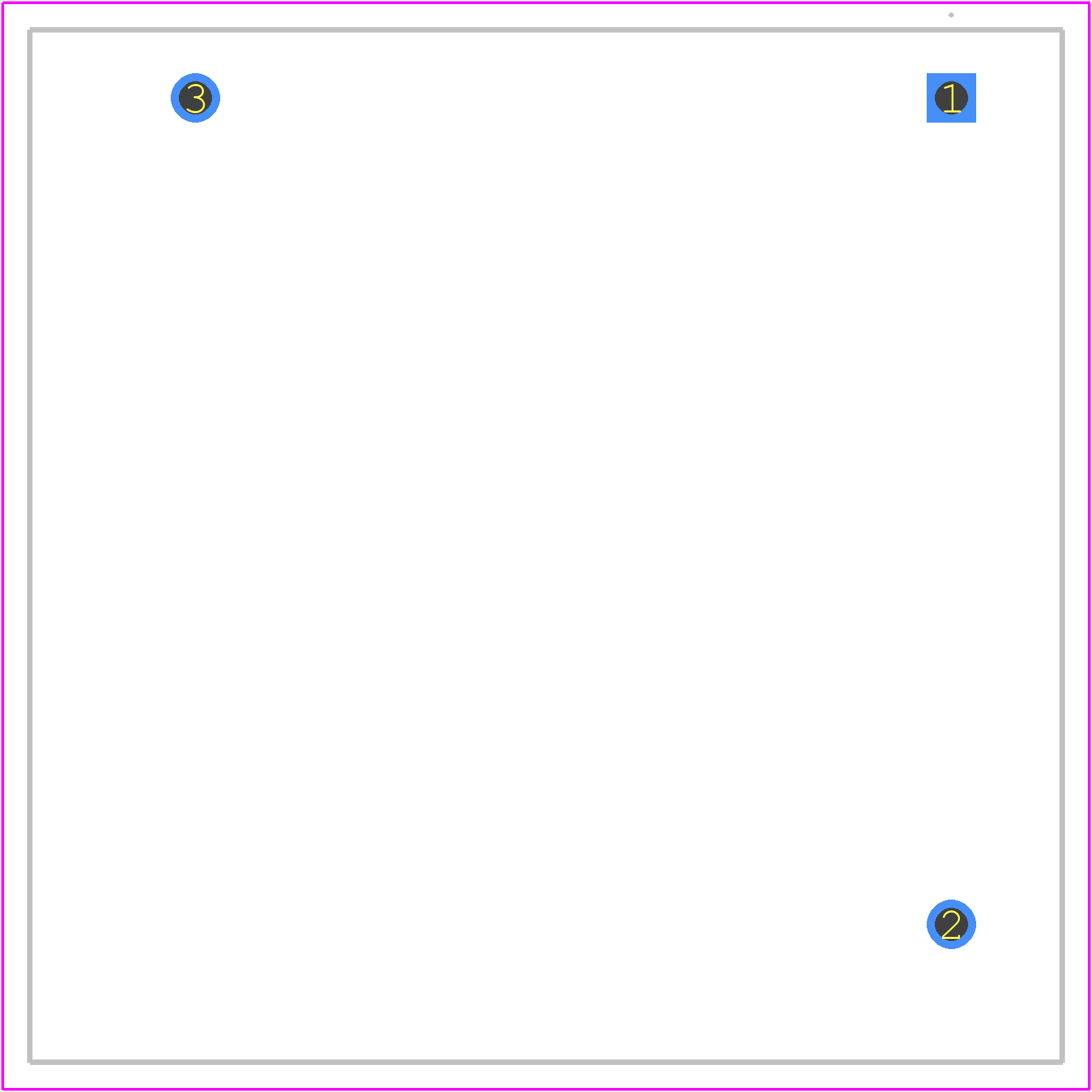

MPM12-1K5P - Advanced Energy PCB footprint - Other - Other - MPM12-1K5P-3
