ADJUSTABLE OUTPUT VOLTAGE RANGE FROM 0.8 V TO 17.85 V, ALSO OPERATES IN PFM CONTROL TECHNIQUE
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
21 V
Input Voltage-Min:
4.5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
R-XXSS-N20
JESD-609 Code:
e3
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
20
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Shape:
RECTANGULAR
Package Style:
SPECIAL SHAPE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.65 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
2000 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Position:
UNSPECIFIED
Time@Peak Reflow Temperature-Max (s):
40
Width:
3 mm
MPM3610GQV-Z Frequently Asked Questions (FAQs)
A good PCB layout for the MPM3610GQV-Z should prioritize thermal management, minimize noise, and ensure good power and ground plane connections. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. Place the IC near the input capacitors and keep the output capacitors close to the output pins.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. A good starting point is to use 10uF to 22uF ceramic capacitors for both input and output.
The MPM3610GQV-Z can operate from 2.7V to 5.5V, but optimal performance is achieved between 3.3V and 4.2V. Operating outside this range may affect efficiency, stability, or output voltage accuracy.
To ensure stability, follow the recommended PCB layout, use a sufficient output capacitor, and ensure the input voltage is within the recommended range. Also, avoid using long, thin traces for power and ground connections, and keep the feedback network components close to the IC.
The MPM3610GQV-Z can deliver up to 1.5A of output current, but this may vary depending on the input voltage, output voltage, and ambient temperature. Always check the thermal performance and power dissipation to ensure reliable operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPM3610GQV-Z Overview

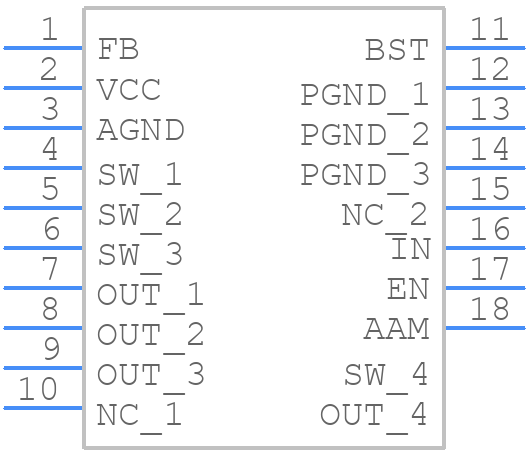

Use the download button to access the MPM3610GQV-Z schematic symbol, PCB footprint, and 3D model.
