MPM3620GQV-Z - Monolithic Power Systems (MPS)

Description: Conv DC-DC Single Step Down 4.5V to 24V 20-Pin QFN T/R

Download MPM3620GQV-Z Model

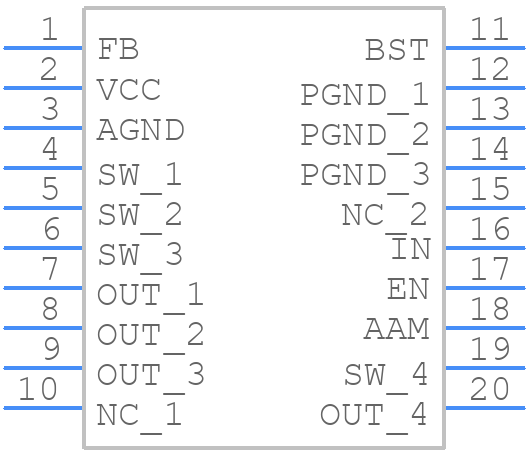

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

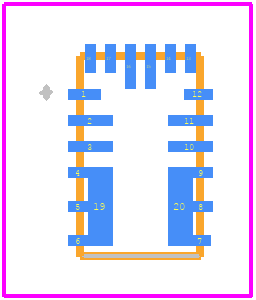

MPM3620GQV-Z - Monolithic Power Systems (MPS) PCB footprint - Other - Other - MPM3610AGQV-P-7
click to zoom
3D Models
MPM3620GQV-Z - Monolithic Power Systems (MPS)  - 3D model - Other - MPM3610AGQV-P-7
click to zoom

MPM3620GQV-Z Details

  • Manufacturer Part Number:

    MPM3620GQV-Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    Monolithic Power Systems

  • YTEOL:

    8

  • Additional Feature:

    OPERATES IN ADJUSTABLE MODE FROM 0.8V TO 5.5V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    24 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-XQCC-N20

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC20(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Seated Height-Max:

    1.65 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Width:

    3 mm

MPM3620GQV-Z Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the switching node (SW pin) away from sensitive analog nodes and ensure good thermal conduction to the PCB ground plane.
  • Use a high-precision voltage reference, such as a 0.5% or better resistor divider network, and ensure the output voltage is measured directly at the output capacitor. Minimize noise and ripple on the output voltage sense lines.
  • The maximum input voltage is 26V, but it's recommended to keep it below 24V for optimal reliability and performance. Exceeding 26V may cause damage to the device.
  • Ensure the output capacitor has a low ESR (< 10mΩ) and a high-quality dielectric (e.g., X5R or X7R). Avoid using ceramic capacitors with high ESR or high inductance. Keep the feedback loop compensation network simple and avoid adding unnecessary poles or zeros.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7μF and 10μF is recommended. The capacitor should be placed close to the VIN pin and have a low inductance path to the PCB ground plane.
