Description:DC/DC CONV, SYNC BUCK, 1.4MHZ, 125DEG C; Topology:Synchronous Buck (Step Down); Input Voltage Min:4.5V; Input Voltage Max:18V; No. of Outputs:1Outputs; DC / DC Converter IC Case:QFN; No. of Pins:20Pins; Output Current:3A RoHS Compliant: Yes
A good PCB layout for the MPM3630GQV-Z should prioritize thermal management, minimize noise, and ensure good power and ground connections. A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Place the IC near the input capacitors and keep the output capacitors close to the output pins.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, choose ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. A good starting point is to use 10uF to 22uF ceramic capacitors for both input and output.
The recommended input voltage range for the MPM3630GQV-Z is 2.7V to 5.5V. Operating outside this range may affect performance, efficiency, and reliability.
Ensure good thermal management by providing adequate heat sinking, using a thermal pad or heat sink, and keeping the device away from heat sources. Monitor the device temperature and adjust the design as needed to keep the junction temperature below 125°C.
The recommended switching frequency for the MPM3630GQV-Z is 2MHz. Operating at this frequency optimizes efficiency, reduces noise, and minimizes electromagnetic interference (EMI).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPM3630GQV-Z Overview

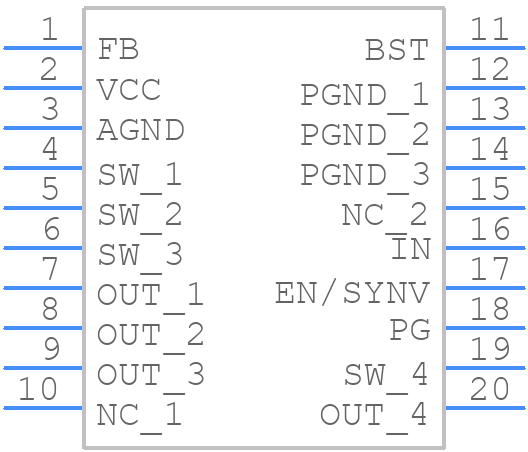

Use the download button to access the MPM3630GQV-Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MPM36,
or try a keyword search, such as Switching Regulator or Controllers
