A good PCB layout is crucial for optimal performance. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the loop area of the high-current paths.
The choice of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides guidelines for capacitor selection, but it's also important to consider factors such as voltage rating, temperature range, and physical size.
The MPM38111GR-P is rated for operation up to 85°C ambient temperature. However, it's recommended to derate the output current and voltage to ensure reliable operation at higher temperatures. The datasheet provides thermal derating curves to help with this calculation.
The MPM38111GR-P has a built-in overcurrent protection (OCP) feature that can be enabled by connecting the OCP pin to a resistor divider network. The datasheet provides a calculation for determining the OCP threshold voltage based on the desired current limit.
The recommended startup sequence is to first apply the input voltage, then enable the EN pin, and finally apply the output load. This sequence helps to prevent unwanted startup behavior and ensures a stable output voltage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
MPM38111GR-P Overview

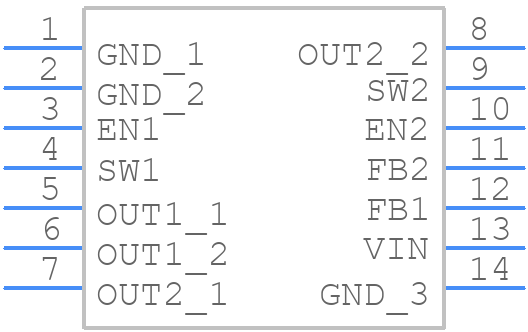

Use the download button to access the MPM38111GR-P schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like MPM38,
or try a keyword search, such as Switching Regulator or Controllers
